MAX3393E

Features:

`Guaranteed Data Rate Options
           230kbps
           8Mbps (+1.2V V<sub>L</sub> V<sub>CC</sub> +5.5V)
           10Mbps (+1.2V V<sub>L</sub> V<sub>CC</sub> +3.3V)
           16Mbps (+1.8V V<sub>L</sub> V<sub>CC</sub> +2.5V and +2.5V V<sub>L</sub> V<sub>CC</sub> +3.3V)
`Bidirectional Level Translation (MAX3372E/MAX3373E and MAX3377E/MAX3378E)
`Operation Down to +1.2V on VL
`±15kV ESD Protection on I/O VCC Lines
`Ultra-Low 1µA Supply Current in Three-State Output Mode
`Low-Quiescent Current (130µA typ)
`UCSP, SOT, and TSSOP Packages
`Thermal Short-Circuit Protection



Application

·SPI™, MICROWIRE™, and I2C™ Level Translation
·Low-Voltage ASIC Level Translation
·Smart Card Readers
·Cell-Phone Cradles
·Portable POS Systems
·Portable Communication Devices
·Low-Cost Serial Interfaces
·Cell Phones
·GPS
Telecommunications Equipment

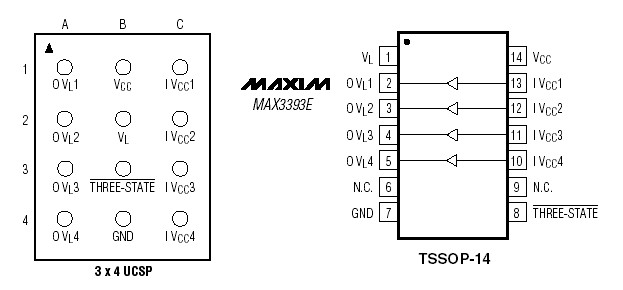

Pinout

Specifications

All Voltages Referenced to GND
V_CC...........................................................................-0.3V to +6V
I/O V_CC_......................................................-0.3V to (V_CC + 0.3V)
I/O V_L_ ..........................................................-0.3V to (V_L + 0.3V)
THREE-STATE .................................................-0.3V to (V_L + 0.3V)
Short-Circuit Duration I/O VL, I/O V_CC to GND.............Continuous
Short-Circuit Duration I/O VL or I/O V_CC to GND
Driven from 40mA Source
(except MAX3372E and MAX3377E) ............................Continuous
Continuous Power Dissipation (T_A = +70)
8-Pin SOT23 (derate 8.9mW/ above +70)....................714mW
3 x 3 UCSP (derate 4.7mW/ above +70) .....................379mW
3 x 4 UCSP (derate 6.5mW/ above +70) .....................579mW
14-Pin TSSOP (derate 9.1mW/ above +70) .................727mW
Operating Temperature Range ...............................-40 to +85
Storage Temperature Range ................................-65 to +150
Lead Temperature (soldering, 10s) ....................................+300


Description

The MAX3372EMAX3379E and MAX3390EMAX3393E ±15kV ESD-protected level translators provide the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. A low-voltage logic signal present on the VL side of the device appears as a high-voltage logic signal on the VCC side of the device, and vice-versa. The MAX3374E/MAX3375E/ MAX3376E/MAX3379E and MAX3390EMAX3393E unidirectional level translators level shift data in one direction (VL VCC or VCC VL) on any single data line. The MAX3372E/MAX3373E and MAX3377E/MAX3378E bidirectional level translators utilize a transmission-gatebased design (Figure 2) to allow data translation in either direction (VL ↔ VCC) on any single data line. The MAX3372EMAX3379E and MAX3390EMAX3393E accept VL from +1.2V to +5.5V and VCC from +1.65V to +5.5V, making them ideal for data transfer between lowvoltage ASICs/PLDs and higher voltage systems.

All devices in the MAX3372EMAX3379E, MAX3390EMAX3393E family feature a three-state output mode that reduces supply current to less than 1µA, thermal shortcircuit protection, and ±15kV ESD protection on the VCC side for greater protection in applications that route signals externally. The MAX3372E/MAX3377E operate at a guaranteed data rate of 230kbps. Slew-rate limiting reduces EMI emissions in all 230kbps devices. The MAX3373EMAX3376E/MAX3378E/MAX3379E and MAX3390EMAX3393E operate at a guaranteed data rate of 8Mbps over the entire specified operating voltage range. Within specific voltage domains, higher data rates are possible. (See Timing Characteristics.)

The MAX3372EMAX3376E are dual level shifters available in 3 x 3 UCSP™ and 8-pin SOT23-8 packages. The MAX3377E/MAX3378E/MAX3379E and MAX3390EMAX3393E are quad level shifters available in 3 x 4 UCSP and 14-pin TSSOP packages.
