Features:

·8 Separately Controlled SPST Switches
·SPI-Compatible Serial Interface
·Accepts ±15V Analog Swings
·Multiple Devices Can Be Daisy Chained


Application

Serial Data Acquisition and Process Control
Avionics
Signal Routing
Networking


Pinout

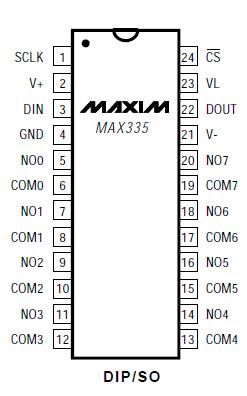

Connection Diagram


Specifications

Voltages Referenced to V-
V+.........................................................................................44V
GND .....................................................................................25V
VL ....................................................(GND - 0.3V) to (V+ + 0.3V)
SCLK, CS, DIN, DOUT, NO_, COM_ ...................V- -2V to V+ +2V
or 30mA, whichever occurs first
Continuous Current (any terminal) ....................... ............30mA
Peak Current, NO or COM
(pulsed at 1ms, 10% duty cycle MAX)...............................100mA
Continuous Power Dissipation (TA = +70) (Note 1)
Narrow Plastic DIP (derate 13.33mW/ above +70)..1067mW
Wide SO (derate 11.76mW/ above +70) ...................941mW
Narrow CERDIP (derate 12.50mW/ above +70) ......1000mW
Operating Temperature Ranges
MAX335C_ _ ............................................................0 to +70
MAX335E_ _ .........................................................-40 to +85
MAX335MRG........................................................-55 to +125
Storage Temperature Range ..............................-65 to +160
Lead Temperature (soldering, 10sec) ..............................+300


Description

The MAX335 analog switch with serial digital interface offers eight separately controlled single-pole-singlethrow (SPST) switches. All switches conduct equally in either direction, and on-resistance (100) is constant over the analog signal range.

These CMOS switches can operate continuously with power supplies ranging from ±4.5V to ±20V and handle rail-to-rail analog signals. Upon power-up, all switches are off, and the internal serial and parallel shift registers are reset to zero. The MAX335 is equivalent to two DG211 quad switches but controlled by a serial interface.

The interface is compatible with the Motorola SPI interface standard. Functioning as a shift register, this serial interface allows data (atDIN) to be locked in synchronous with the rising edge of clock (SCLK). The shift register's output (DOUT) enables several MAX335s to be daisy chained.
