MAX3313E

Features: ` ESD Protection for RS-232-Compatible I/O Pins ±15kV-Human Body Model` 1A Low-Power Shutdown (MAX3311E)`INVALID Output (MAX3313E)` Receiver Active in Shutdown (MAX3311E)` Single Transceiver (1Tx/1Rx) in 10-Pin MAX PackageApplication·Digital Cameras·PDAs·GPS·POS·Telecommunications·Handy ...

product image

MAX3313E Picture
See larger image
SeekIC No. : 004409981 Detail

MAX3313E: Features: ` ESD Protection for RS-232-Compatible I/O Pins ±15kV-Human Body Model` 1A Low-Power Shutdown (MAX3311E)`INVALID Output (MAX3313E)` Receiver Active in Shutdown (MAX3311E)` Single Transceiv...

MAX3313E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX3313E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` ESD Protection for RS-232-Compatible I/O Pins ±15kV-Human Body Model
` 1A Low-Power Shutdown (MAX3311E)
`INVALID Output (MAX3313E)
` Receiver Active  in Shutdown (MAX3311E)
` Single Transceiver (1Tx/1Rx) in 10-Pin MAX Package


Application

·Digital Cameras
·PDAs
·GPS
·POS
·Telecommunications
·Handy Terminals
·Set-Top Boxes

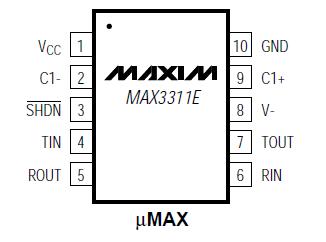

Pinout

Connection Diagram


Specifications

VCC to GND.........................................................-0.3V to +6V
V- to GND .......................................................... +0.3V to -7V
VCC + |V-| .....................................................................+13V
Input Voltages
    TIN, SHDN to GND........................................... -0.3V to +6V
    RIN to GND.................................................................±25V
Output Voltages
    TOUT to GND.......................................................... ±13.2V
    ROUT, INVALID to GND .................... -0.3V to (VCC + 0.3V)
Short-Circuit Duration
    TOUT to GND......................................................Continuous
Continuous Power Dissipation
    10-Pin MAX (derate 5.6mW/ above +70) .........444mW
Operating Temperature Ranges
    MAX331_ECUB................................................. 0to +70
    MAX331_EEUB .............................................-40 to +85
Junction Temperature....................................................+150
Storage Temperature Range ............................-65 to +150
Lead Temperature (soldering, 10s) ................................+300


Description

The MAX3311E/MAX3313E are low-power, 5V EIA/TIA- 232-compatible transceivers. All transmitter outputs and receiver inputs are protected to ±15kV using the Human Body Model, making these devices ideal for applications where more robust transceivers are required.

The MAX3311E/MAX3313E  have one transmitter and one receiver. The transmitters have a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a +5V supply with a single inverting charge pump. These transceivers require only three 0.1F capacitors and will run at data rates up to 460kbps while maintaining RS-232-compatible output levels.

The MAX3311E features a 1A shutdown mode. In shutdown the device turns off the charge pump, pulls V- to ground, and the transmitter output is disabled. The MAX3313E features an INVALID output that asserts high when an active RS-232 cable signal is connected, signaling to the host that a peripheral is connected to the communication port.
