Features:

200nA Input-Referred Noise (MAX3266)500nA Input-Referred Noise (MAX3267)
920MHz Bandwidth (MAX3266)1900MHz Bandwidth (MAX3267)
1mA Input Overload
Single +3.0V to +5.5V Supply Voltage




Application

Gigabit Ethernet
1.0Gbps to 2.5Gbps Optical Receivers
Fibre Channel



Pinout

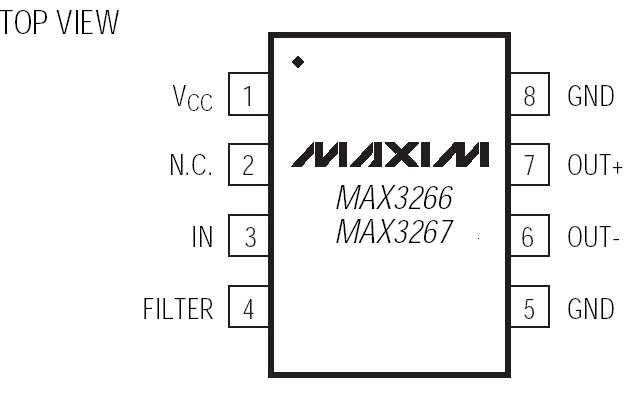

Connection Diagram


Specifications

Supply Voltage (VCC - GND) .................................-0.5V to +6.0V
IN Current.............................................................-4mA to +4mA
FILTER Current......................................................-8mA to +8mA
Voltage at OUT+, OUT- ...................(VCC - 1.5V) to (VCC + 0.5V)
Continuous Power Dissipation (TA = +70)
SO package (derate 6.7mW/above +70)...................533mW
Storage Temperature Range .............................-55 to +150
Operating Junction Temperature (die) ..............-55 to +150
Processing Temperature (die) ........................................+400
Lead Temperature (soldering, 10sec) ............................+300


Description

The MAX3266 is a transimpedance preamplifier for1.25Gbps LAN fiber optic receivers. The circuit features200nA input-referred noise, 920MHz bandwidth, and1mA input overload.

The MAX3267 provides a pin-for-pin compatible solutionfor communications up to 2.5Gbps. It features500nA input-referred noise, 1.9GHz bandwidth, and1mA input overload.

Both devices operate from a single +3.0V to +5.5V supplyand require no compensation capacitor. They alsoinclude a space-saving filter connection that providespositive bias for the photodiode through a 1.5k resistorto VCC. These features allow easy assembly into a TO-46or TO-56 header with a photodiode.

The 1.25Gbps MAX3266 has a typical optical dynamicrange of -24dBm to 0dBm in a shortwave (850nm)configuration or -27dBm to -3dBm in a longwave(1300nm) configuration. The 2.5Gbps MAX3267 has atypical optical dynamic range of -21dBm to 0dBm in ashortwave configuration or -24dBm to -3dBm in a longwaveconfiguration
