MAX207E

Features:

For Low-Voltage Applications
MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: ±15kV ESD-Protected Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers (MAX3246E Available in a UCSP™ Package)
For Low-Power Applications
MAX3221/MAX3223/MAX3243: 1µA Supply Current, True +3V to +5.5V RS-232 Transceivers with Auto-Shutdown™
For Space-Constrained Applications
MAX3233E/MAX3235E: ±15kV ESD-Protected, 1µA, 250kbps, +3.0V/+5.5V, Dual RS-232 Transceivers with Internal Capacitors
For Low-Voltage or Data Cable Applications
MAX3380E/MAX3381E: +2.35V to +5.5V, 1µA, 2Tx/2Rx RS-232 Transceivers with ±15kV ESDProtected I/O and Logic Pins


Application

Notebook, Subnotebook, and Palmtop Computers Battery-Powered Equipment Hand-Held Equipment

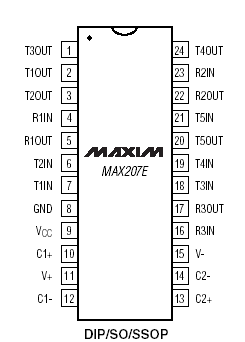

Pinout

Specifications

VCC..........................................................................-0.3V to +6V
V+................................................................(VCC - 0.3V) to +14V
V- ............................................................................-14V to +0.3V
Input Voltages
  T_IN ............................................................-0.3V to (V+ + 0.3V)
  R_IN ...................................................................................±30V
Output Voltages
  T_OUT.................................................(V- - 0.3V) to (V+ + 0.3V)
  R_OUT......................................................-0.3V to (VCC + 0.3V)
Short-Circuit Duration, T_OUT....................................Continuous
Continuous Power Dissipation (TA = +70°C)
 16-Pin Plastic DIP (derate 10.53mW/°C above +70°C)...842mW
 16-Pin Narrow SO (derate 8.70mW/°C above +70°C) ....696mW
 16-Pin Wide SO (derate 9.52mW/°C above +70°C) .......762mW
 16-Pin TSSOP (derate 9.4mW/°C above +70°C) ............755mW
 20-Pin Plastic DIP (derate 11.11mW/°C above +70°C)...889mW
 20-Pin SO (derate 10.00mW/°C above +70°C)...............800mW
 24-Pin Narrow Plastic DIP
 (derate 13.33mW/°C above +70°C) ................................1.07W
  24-Pin Wide Plastic DIP
 (derate 14.29mW/°C above +70°C).................................1.14W
  24-Pin SO (derate 11.76mW/°C above +70°C).............941mW
  24-Pin SSOP (derate 8.00mW/°C above +70°C) ..........640mW
  28-Pin SO (derate 12.50mW/°C above +70°C)....................1W
  28-Pin SSOP (derate 9.52mW/°C above +70°C) ..........762mW
Operating Temperature Ranges
  MAX2_ _EC_ _ .....................................................0°C to +70°C
  MAX2_ _EE_ _...................................................-40°C to +85°C
Storage Temperature Range .............................-65°C to +165°C
Lead Temperature (soldering, 10sec) .............................+300°C


Description

The MAX202EMAX213E, MAX232E/MAX241E line drivers/receivers are designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The MAX202EMAX213E, MAX232E/MAX241E drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification.

The MAX202EMAX213E, MAX232E/MAX241Eare available in 28- pin SO packages, as well as a 28-pin SSOP that uses 60% less board space. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external charge-pump capacitors. The MAX206E/MAX207E/MAX208E come in
24-pin SO, SSOP, and narrow DIP packages. The MAX232E/MAX241E operate with four 1µF capacitors, while the MAX202E/MAX206E/MAX207E/MAX208E/ MAX211E/MAX213E operate with four 0.1µF capacitors, further reducing cost and board space.
