MAX2055

All Pins to GND. .....................................-0.3V to +(V_CC + 0.25V)
Input Signal (RF_IN)..........................................................20dBm
Output Power (RF_OUT)...................................................24dBm
Continuous Power Dissipation (T_A = +70°C)
48-Pin TQFP-EP (derate 21.7mW/°C above +70°C) ..........2.1W
Operating Temperature Range ........................-40°C to +85° C
Junction Temperature.....................................................+150° C
Storage Temperature Range .........................-65°C to +150°C
Soldering Temperature (10s) .........................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

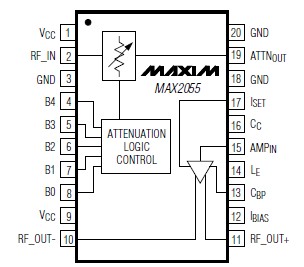

The MAX2055 high-performance, digitally controlled, variable-gain, differential analog-to-digital converter (ADC) driver/amplifier (DVGA) is designed for use from 30MHz to 300MHz in base station receivers.

The device integrates a digitally controlled attenuator and a high-linearity single-ended-to-differential output amplifier, which can either eliminate an external transformer, or can improve the even-order distortion performance of a transformer-coupled circuit, thus relaxing the requirements of the anti-alias filter preceding an ADC. Targeted for ADC driver applications to adjust gain either dynamically or as a one-time channel gain setting, the MAX2055 is ideal for applications requiring high performance. The attenuator provides 23dB of attenuation range with ±0.2dB accuracy.

The MAX2055 is available in a thermally enhanced 20- pin TSSOP-EP package and operates over the -40°C to +85°C temperature range.
