MAX19708

V_DD to GND, OV_DD to OGND ................................-0.3V to +3.6V
GND to OGND.......................................................-0.3V to +0.3V
IAP, IAN, QAP, QAN, IDP, IDN, QDP,
QDN, DAC1, DAC2, DAC3 to GND..............................-0.3V to V_DD
ADC1, ADC2 to GND....................................-0.3V to (V_DD + 0.3V)
REFP, REFN, REFIN, COM to GND ................-0.3V to (V_DD + 0.3V)
D0D9, DOUT, T/R, SHDN, SCLK, DIN, CS,
CLK to OGND ............................................-0.3V to (OV_DD + 0.3V)
Continuous Power Dissipation (T_A = +70°C)
48-Pin Thin QFN (derate 27.8mW/°C above +70°C) .......2.22W
Thermal Resistance _JA ..................................................36°C/W
Operating Temperature Range .........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ...........................-60°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

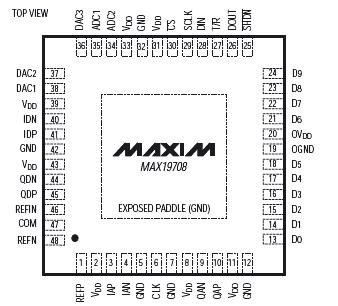

The MAX19708 is an ultra-low-power, mixed-signal ana-log front-end (AFE) designed for TD-SCDMA handsets and data cards. Optimized for high dynamic perfor-mance at ultra-low power, the device integrates a dual 10-bit, 11Msps receive (Rx) ADC; dual 10-bit, 11Msps transmit (Tx) DAC with TD-SCDMA baseband filters; three fast-settling 12-bit aux-DAC channels for ancillary
RF front-end control; and a 10-bit, 333ksps housekeep-ing aux-ADC. The typical operating power in Tx-Rx FAST mode is 36.9mW at a 5.12MHz clock frequency.
The Rx ADCs of MAX19708 feature 55dB SNR and 77.4dBc SFDR at a 1.87MHz input frequency with an 11MHz clock frequen-cy. The analog I/Q input amplifiers are fully differential and accept 1.024VP-P full-scale signals. Typical I/Q channel matching is ±0.08° phase and ±0.02dB gain.
