MAX1648

Charges Any Battery Chemistry: Li-Ion, NiCd, NiMH, Lead Acid, etc.
Intel SMBus 2-Wire Serial Interface (MAX1647)
Intel/Duracell Level 2 Smart Battery Compliant (MAX1647)
4A, 2A, or 1A Maximum Battery-Charge Current
11-Bit Control of Charge Current
Up to 18V Battery Voltage
10-Bit Control of Voltage
±0.75% Voltage Accuracy with External ±0.1% Reference
Up to 28V Input Voltage
Battery Thermistor Fail-Safe Protection

Notebook Computers Personal Digital Assistants Charger Base Stations Phones

DCIN to AGND..................................................................................-0.3V to 30V
DCIN to IOUT..................................................................................-0.3V to 7.5V
BST to AGND....................................................................................-0.3V to 36V
BST, DHI to LX ..................................................................................-0.3V to 6V
LX to AGND .....................................................................................-0.3V to 30V
THM, CCI, CCV, DACV, REF,
DLO to AGND........................................................................-0.3V to (VL + 0.3V)
VL, SEL, INT, SDA, SCL to AGND (MAX1647) .....................................-0.3V to 6V
SETV, SETI to AGND (MAX1648)........................................................-0.3V to 6V
BATT, CS+ to AGND.........................................................................-0.3V to 20V
PGND to AGND.............................................................................-0.3V to +0.3V
SDA, INT Current ......................................................................................50mA
VL Current ................................................................................................50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin SO (derate 8.7mW/°C above +70°C).......................................696mW
20-Pin SSOP (derate 8mW/°C above +70°C) .....................................640mW
Operating Temperature Range
MAX1647EAP, MAX1648ESE ....................................................-40°C to +85°C
Storage Temperature............................................................-60°C to +150°C
Lead Temperature (soldering, 10sec) ..................................................+300°C

The MAX1647/MAX1648 provide the power control necessary to charge batteries of any chemistry. In the MAX1647, all charging functions are controlled via the Intel System Management Bus (SMBus™) interface. The SMBus 2-wire serial interface sets the charge voltage and current, and provides thermal status information. The MAX1647 functions as a level 2 charger, compliant with the Duracell/Intel Smart Battery Charger Specification. The MAX1648 omits the SMBus serial interface, and instead sets the charge voltage and current proportional to the voltage applied to external control pins.

In addition to the feature set required for a level 2 charger, the MAX1647 generates interrupts to signal the host when power is applied to the charger or a battery is installed or removed. Additional status bits allow the host to check whether the charger has enough input voltage, and whether the voltage on or current into the battery is being regulated. This allows the host to determine when lithiumion batteries have completed charge without interrogating the battery.

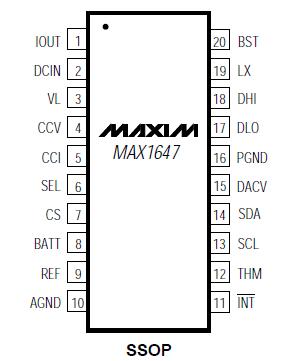

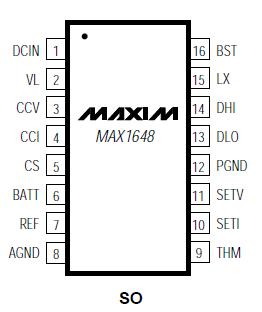

The MAX1647 is available in a 20-pin SSOP with a 2mm profile height. The MAX1648 is available in a 16-pin SO package.
