MAX1605ETT-T

Number of Digits :
Number of Segments :
Maximum Clock Frequency :
Operating Supply Voltage :
Maximum Power Dissipation :
Maximum Operating Temperature :
Package / Case :
Packaging :


Features:

 Adjustable Output Voltage up to 30V
20mA at 20V from a Single Li+ Battery
88% Efficiency
Up to 500kHz Switching Frequency
Selectable Inductor Current Limit(125mA, 250mA, or 500mA)
18A Operating Supply Current
0.1A Shutdown Current
Avaiable in Two Small Packages 6-Pin TDFN 6-Pin SOT23


Application

LCD Bias Generators
Cellular/Cordless Phones
Palmtop Computers
Personal Digital Assistants (PDAs)
Organizers
Handy Terminals

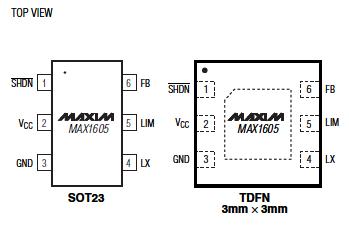

Pinout




Specifications

VCC, FB, LIM, SHDN to GND...............................................-0.3V to +6V
LX to GND ......................................................................-0.3V to +32V
Continuous Power Dissipation (TA = +70°C)
6-Pin SOT23 (derate 8.7mW/°C above +70°C) ....................696mW
6-Pin TDFN (derate 24.4mW/°C above +70°C) ..................1951mW

Operating Temperature Range ...............................-40°C to +85°C
Junction Temperature............................................................+150°C
Storage Temperature Range ................................-65°C to +150°C
Lead Temperature (soldering, 10s) ......................................+300°C



Description

The MAX1605ETT-T boost converter contains a 0.5A internal switch in a tiny 6-pin SOT23 package. The IC operates from a +2.4V to +5.5V supply voltage, but can boost battery voltages as low as 0.8V up to 30V at the output.
The MAX1605ETT-T uses a unique control scheme providing the highest efficiency over a wide range of load conditions. An internal 0.5A MOSFET reduces external component count, and a high switching frequency (up to 500kHz) allows for tiny surface-mount components. The current limit can be set to 500mA, 250mA, or 125mA, allowing the user to reduce the output ripple and component size in low-current applications.
Additional features include a low quiescent supply current and a shutdown mode to save power. The MAX1605 is ideal for small LCD panels with low current requirements, but can also be used in other applications. A MAX1605EVKIT evaluation kit (EV kit) is available to help speed up design time.
