Features: · Fixed Thresholds for 5V, 3.3V, 3V, 2.5V, 1.8V, 1.5V, 1.2V, and 0.9V Systems
· Adjustable Thresholds Monitor Voltages Down to 0.4V
· Open-Drain Outputs with Internal Pullups Reduce the Number of External Components
· Fixed 140ms (min) or Capacitor-Adjustable Reset Timeout
· Manual Reset, Margin Enable, and Tolerance Select Inputs
· Watchdog Timer 1.6s Typical Timeout Period 54s Startup Delay After Reset (Except MAX16005)
· Independent Watchdog Output (MAX16005)
· RESET Output Indicates All Voltages Present
· Independent Voltage Monitors
· Guaranteed Correct Logic State Down to VCC = 1V
· Small (4mm x 4mm) Thin QFN PackageApplication·Storage Equipment
·Servers
·Networking/Telecommunication Equipment

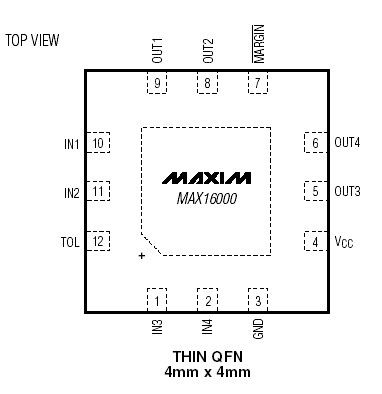

·Multivoltage ASICsPinout
SpecificationsVCC, OUT_, IN_, RESET, WDO to GND.....................-0.3V to +6V
TOL, MARGIN, MR, SRT, WDI, to GND ............-0.3V to VCC + 0.3
Input/Output Current (RESET, MARGIN,
SRT, MR, TOL, OUT_, WDO, WDI) ..................................±20mA
Continuous Power Dissipation (TA = +70°C)
12-Pin TQFN (derate 16.9mW/°C above +70°C) ......1349mW
16-Pin TQFN (derate 16.9mW/°C above +70°C) ......1349mW
20-Pin TQFN (derate 16.9mW/°C above +70°C) ......1355mW
24-Pin TQFN (derate 16.9mW/°C above +70°C) ......1666mW
Operating Temperature Range ....................-40°C to +125°C
Junction Temperature ..................................................+150°C
Storage Temperature Range .......................-65°C to +150°C
Lead Temperature (soldering, 10s) .............................+300°C
DescriptionThe MAX16000MAX16007 are low-voltage, quad-/hex-/ octal-voltage µP supervisors in a small thin QFN package. These devices provide supervisory functions for complex multivoltage systems. The MAX16000/ MAX16001/MAX16002 monitor four voltages, the MAX16003/MAX16004/MAX16005* monitor six voltages, and the MAX16006/MAX16007 monitor eight voltages.
The MAX16000/MAX16001/MAX16003/MAX16004/ MAX16006 offer independent outputs for each monitored voltage. The MAX16001/MAX16002/MAX16004 MAX16007 offer a reset output that asserts whenever any of the monitored voltages fall below their respective thresholds or the manual reset input is asserted. The reset output remains asserted for the reset timeout after all voltages are above their respective thresholds and the manual reset input is deasserted. The minimum reset timeout is internally set to 140ms or can be adjusted with an external capacitor.
All open-drain outputs have internal 30µA pullups that eliminate the need for external pullup resistors. However, each output can be driven with an external voltage up to 5.5V. Other features offered include a manual reset input, a tolerance pin for selecting 5% or 10% input thresholds, and a margin enable function for deasserting the outputs during margin testing.
The MAX16001/MAX16002/MAX16004MAX16007 offer a watchdog timer that asserts RESET or an independent watchdog output (MAX16005) when the watchdog timeout period (1.6s typ) is exceeded. The watchdog timer can be disabled by floating the input.
These devices are offered in 12-, 16-, 20-, and 24-lead thin QFN packages (4mm x 4mm) and are fully specified from -40°C to +125°C.
MAX16000 Data Sheet
