MAX1473

Features: Optimized for 315MHz or 433MHz ISM BandOperates from Single 3.3V or 5.0V SuppliesHigh Dynamic Range with On-Chip AGCSelectable Image-Rejection Center FrequencySelectable x64 or x32 fLO/fXTAL RatioLow 5.2mA Operating Supply Current<2.5µA Low-Current Power-Down Mode for Efficient ...

product image

MAX1473 Picture
See larger image
SeekIC No. : 004408947 Detail

MAX1473: Features: Optimized for 315MHz or 433MHz ISM BandOperates from Single 3.3V or 5.0V SuppliesHigh Dynamic Range with On-Chip AGCSelectable Image-Rejection Center FrequencySelectable x64 or x32 fLO/fXT...

MAX1473 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1473
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Optimized for 315MHz or 433MHz ISM Band
Operates from Single 3.3V or 5.0V Supplies
High Dynamic Range with On-Chip AGC
 Selectable Image-Rejection Center Frequency
 Selectable x64 or x32 fLO/fXTAL Ratio
 Low 5.2mA Operating Supply Current
 <2.5µA Low-Current Power-Down Mode for
    Efficient Power Cycling
 250µs Startup Time
 Built-In 50dB RF Image Rejection
 Receive Sensitivity of -114dBm



Application

Automotive Remote Keyless Entry
Garage Door Openers
Remote Controls Wireless
SecuritySystems
Home Automation
Local Telemetry
Systems


Pinout

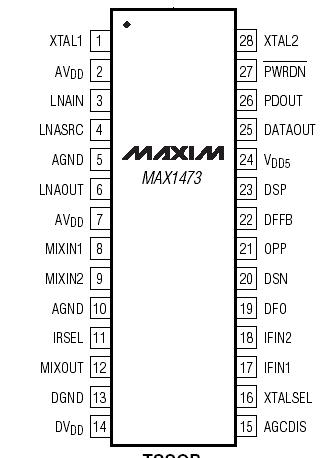

Connection Diagram


Specifications

AVDD5 to AGND .....................................................-0.3V to +6.0V
AVDD to AGND .......................................................-0.3V to +4.0V
DVDD to DGND.......................................................-0.3V to +4.0V
AGND to DGND.......................................................-0.1V to +0.1V
IRSEL, DATAOUT, XTALSEL, AGCDIS,
PWRDN to AGND .......................................-0.3V to (VDD5 + 0.3V)
All Other Pins to AGND ...............................-0.3V to (VDD + 0.3V)
Continuous Power Dissipation................................ (TA = +70°C)
28-Pin TSSOP (derate 12.8mW/°C above +70°C) .1025.6mW
32-Pin Thin QFN (derate 21.3mW/°C
above +70°C).............................................................1702.1mW
Operating Temperature Ranges
MAX1473E__ .....................................................-40°C to +85°C
Storage Temperature Range ...........................-60°C to +150°C
Lead Temperature (soldering 10s) ................................+300°C


Description

The MAX1473 fully integrated low-power CMOS superheterodyne receiver is ideal for receiving amplitudeshift- keyed (ASK) data in the 300MHz to 450MHz frequency range. Its signal range is from -114dBm to 0dBm. With few external components and a low-current power-down mode, it is ideal for cost- and power-sensitive applications typical in the automotive and consumer markets. The chip consists of a low-noise amplifier (LNA), a fully differential image-rejection mixer, an onchip phase-locked-loop (PLL) with integrated voltagecontrolled oscillator (VCO), a 10.7MHz IF limiting amplifier stage with received-signal-strength indicator (RSSI), and analog baseband data-recovery circuitry. The MAX1473 also has a discrete one-step automatic gain control (AGC) that drops the LNA gain by 35dB when the RF input signal is greater than -57dBm.

The MAX1473 is available in 28-pin TSSOP and 32-pin thin QFN packages. Both versions are specified for the extended (-40°C to +85°C) temperature range.
