Features: High Accuracy (within ±0.1% of sensor's repeatable errors)
Compensates Offset, Offset TC, FSO, FSO TC,Temperature/Pressure Nonlinearity
Rail-to-Rail® Analog Output for Calibrated,Temperature-Compensated Pressure Measurements
Programmable Sensor Excitation Current
SPI/MicroWire-Compatible Serial Interface
Fast Signal-Path Settling Time (<1ms)
Accepts Sensor Outputs from 5mV/V to 30mV/V
Pin-Compatible with MCA7707Pinout
SpecificationsSupply Voltage, VDD to VSS......................................-0.3V to +6V
All other pins.....................................(VSS- 0.3V) to (VDD+ 0.3V)
Continuous Power Dissipation (TA= +70°C)

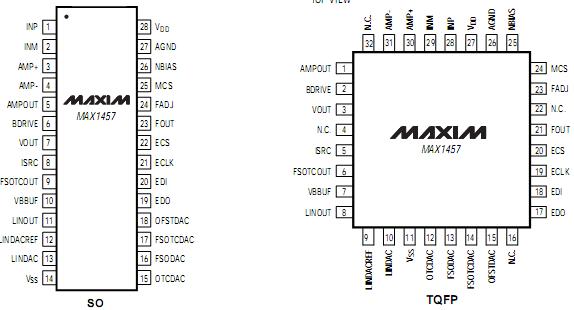

28-Pin Wide SO (derate 12.50mW/°C above +70°C)..........1W
32-Pin TQFP (derate 11.1mW/°C above +70°C)...........889mW
Operating Temperature Ranges
MAX1457C_ _......................................................0°C to +70°C
MAX1457A_ _.................................................-40°C to +125°C
Storage Temperature Range..........................-65°C to +150°C
Lead Temperature (soldering, 10sec)............................+300°CDescriptionThe MAX1457 is a highly integrated analog-sensor sig-nal processor optimized for piezoresistive sensor cali-bration and compensation. It includes a programmable current source for sensor excitation, a 3-bit program-mable-gain amplifier (PGA), a 12-bit ADC, five 16-bit DACs, and an uncommitted op amp. Achieving a total error factor within 0.1% of the sensor's repeatability errors, the MAX1457 compensates offset, full-span out-put (FSO), offset TC, FSO TC, and full-span output non-linearity of silicon piezoresistive sensors.
The MAX1457 calibrates and compensates first-order temperature errors by adjusting the offset and span of the input signal via digital-to-analog converters (DACs), thereby eliminating quantization noise. If needed, resid-ual higher-order errors are then compensated using lin-ear interpolation of the first-order coefficients stored in a look-up table (in external EEPROM).
The MAX1457 integrates three traditional sensor-manufacturing operations into one automated process:
•Pretest: Data acquisition of sensor performance under the control of a host test computer.
•Calibration and Compensation: Computation and storage (in an external EEPROM) of calibration and compensation coefficients determined from transducer pretest data.
•Final Test: Verification of transducer calibration and compensation, without removal from a pretest socket.
Analog outputs are provided for both pressure and tem-perature. A general-purpose, uncommitted op amp is also included on-chip to increase the overall circuit gain, or to facilitate the implementation of a 2-wire, 420mA transmit-ter. The serial interface is compatible with MicroWire™ and SPI™, and directly connects to an external EEPROM. Additionally, built-in testability features of the MAX1457 facilitate manufacturing and calibration of multiple sensor modules, thus lowering manufacturing cost.
Although optimized for use with piezoresistive sensors, the MAX1457 may also be used with other resistive sensor types (i.e., accelerometers and strain gauges) with the addition of a few external components.
MAX1457 Data Sheet
