MAX1444

  Single 3.0V Operation
  Excellent Dynamic Performance
         59.5dB SNR at f_IN = 20MHz
         74dBc SFDR at f_IN = 20MHz
  Low Power
        19mA (Normal Operation)
        5µA (Shutdown Mode)
  Fully Differential Analog Input
  Wide 2V_p-p Differential Input Voltage Range
  400MHz -3dB Input Bandwidth
  On-Chip 2.048V Precision Bandgap Reference
  CMOS-Compatible Three-State Outputs

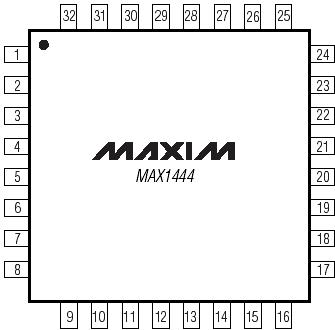

  32-Pin TQFP Package
  Evaluation Kit Available

VDD, OVDD to GND ...............................................-0.3V to +3.6V
OGND to GND....................................................... -0.3V to +0.3V
IN+, IN- to GND........................................................-0.3V to VDD
REFIN, REFOUT, REFP,
REFN, and COM to GND..............................-0.3V to (VDD + 0.3V)
OE, PD, CLK to GND...................................-0.3V to (VDD + 0.3V)
D9D0 to GND.........................................-0.3V to (OVDD + 0.3V)
Continuous Power Dissipation (T_A = +70°C)
32-Pin TQFP (derate 18.7mW/°C above +70°C)........1495.3mW
Operating Temperature Range .........................-40°C to +85°C
Storage Temperature Range ..........................-60°C to +150°C
Lead Temperature (soldering, 10s) ...............................+300°C

The MAX1444 10-bit, 3V analog-to-digital converter (ADC) features a pipelined 10-stage ADC architecture with fully differential wideband track-and-hold (T/H) input and digital error correction incorporating a fully differential signal path. This ADC is optimized for lowpower, high dynamic performance applications in imaging and digital communications. The MAX1444 operates from a single 2.7V to 3.6V supply, consuming only 57mW while delivering a 59.5dB signal-to-noise ratio (SNR) at a 20MHz input frequency. The fully differential input stage has a 400MHz -3dB bandwidth and may be operated with single-ended inputs. In addition to low operating power, the MAX1444 features a 5µA power-down mode for idle periods.

An internal 2.048V precision bandgap reference is used to set the ADC full-scale range. A flexible reference structure allows the user to supply a buffered, direct, or externally derived reference for applications requiring increased accuracy or a different input voltage range.

Higher speed, pin-compatible versions of the MAX1444 are also available. Please refer to the MAX1446 data sheet (60Msps) and the MAX1448 data sheet (80Msps).

The MAX1444 has parallel, offset binary, CMOS-compatible three-state outputs that can be operated from 1.7V to 3.6V to allow flexible interfacing. The device is available in a 5x5mm 32-pin TQFP package and is specified over the extended industrial (-40°C to +85°C) temperature range.
