65Msps Minimum Sampling Rate
-78.2dBFS Noise Floor
Excellent Dynamic Performance 73.6dB SNR at fIN = 70MHz and AIN = -2dBFS88dBc/92dBc Single-Tone SFDR1/SFDR2 atfIN = 70MHz and AIN = -2dBFS-85dB Multitone SFDR at fIN1 = 69MHzand fIN2 = 71MHz
Less than 0.25ps Sampling Jitter
Fully Differential Analog Input Voltage Range of2.56VP-P
CMOS-Compatible Two's-Complement Data Output
Separate Data Valid Clock and Overrange Outputs
Flexible-Input Clock Buffer
EV Kit Available for MAX1418(Order MAX1427EVKIT)
AVCC, DVCC, DRVCC to GND............................... -0.3V to +6V
INP, INN, CLKP, CLKN, CM to GND........-0.3V to (AVCC + 0.3V)
D0D14, DAV, DOR to GND.................0.3V to (DRVCC + 0.3V)
Continuous Power Dissipation ...........................(TA = +70°C)
56-Pin QFN (derate 47.6mW/°C above +70°C) .....3809.5mW
Operating Temperature Range ......................-40°C to +85°C
Thermal Resistance JA...............................................21°C/W
Junction Temperature.................................................+150°C
Storage Temperature Range ......................-60°C to +150°C
Lead Temperature (soldering, 10s) ..........................+300°C

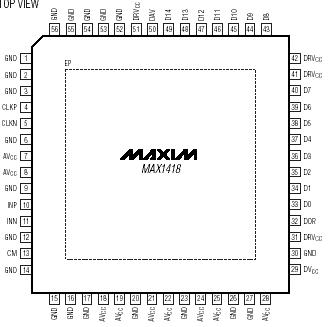

The MAX1418 is a 5V, high-speed, high-performance analog-to-digital converter (ADC) featuring a fully differential wideband track-and-hold (T/H) and a 15-bit converter core. The MAX1418 is optimized for multichannel, multimode receivers, which require the ADC to meet very stringent dynamic performance requirements. With a noise floor of -78.2dBFS, the MAX1418 allows for the design of receivers with superior sensitivity.
The MAX1418 achieves two-tone, spurious-free dynamic range (SFDR) of -85dBc for input tones of 69MHz and 71MHz. Its excellent signal-to-noise ratio (SNR) of 73.6dB and single-tone SFDR performance (SFDR1/SFDR2) of 88dBc/92dBc at fIN = 70MHz and a sampling rate of 65Msps make this part ideal for high-performance digital receivers.
The MAX1418 operates from an analog 5V and a digital 3V supply, features a 2.56VP-P full-scale input range, and allows for a sampling speed of up to 65Msps. The input T/H operates with a -1dB full-power bandwidth of 260MHz.
The MAX1418 features parallel, CMOS-compatible outputs in two's-complement format. To enable the interface with a wide range of logic devices, this ADC provides a separate output driver power-supply range of 2.3V to 3.5V. The MAX1418 is manufactured in an 8mm x 8mm, 56-pin QFN package with exposed paddle (EP) for low thermal resistance, and is specified for the extended industrial (-40°C to +85°C) temperature range.
Note that IF parts MAX1418, MAX1428, and MAX1430 (see Pin-Compatible Higher/Lower Speed Versions Selection table) are recommended for applications that require high dynamic performance for input frequencies greater than fCLK/3. Unlike its baseband counterpart MAX1419, the MAX1418 is optimized for input frequencies greater than fCLK/3.
