MAX1360

ADC / DAC Multichannel

product image

MAX1360 Picture
See larger image
SeekIC No. : 00340358 Detail

MAX1360: ADC / DAC Multichannel

MAX1360 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1360
Mfg:
Maxim Integrated Products
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Conversion Rate :
Resolution :
Interface Type :
Voltage Reference :
Supply Voltage - Max :
Supply Voltage - Min :
Maximum Operating Temperature :
Mounting Style :
Package / Case :


Features:

· +1.8V to +3.6V Single-Supply Operation
· Multichannel 16-Bit Sigma-Delta ADC
    10sps to 512sps Programmable Conversion Rate
    Self and System Offset and Gain Calibration
    PGA with Gains of 1, 2, 4, or 8
    Unipolar and Bipolar Modes
    10-Input Differential Multiplexer
· 10-Bit Force-Sense DACs
· Uncommitted Op Amps
· Dual SPDT Analog Switches
· 1.25V, 2.048V, or 2.5V Selectable Voltage Reference
· Internal Charge Pump
· System Support
    Real Time Clock and Alarm Register
    Internal/External Temperature Sensor
    Internal Oscillator with Clock Output
    User-Programmable I/O and Interrupt Generator
    VDD Monitors
· SPI/QSPI/MICROWIRE, 4-Wire Serial Interface
· Space-Saving (6mm x 6mm x 0.8mm) 40-Pin TQFN Package


Application

·Battery-Powered and Portable Devices
·Electrochemical and Optical Sensors
·Medical Instruments
·Industrial Control
·Data-Acquisition Systems


Pinout

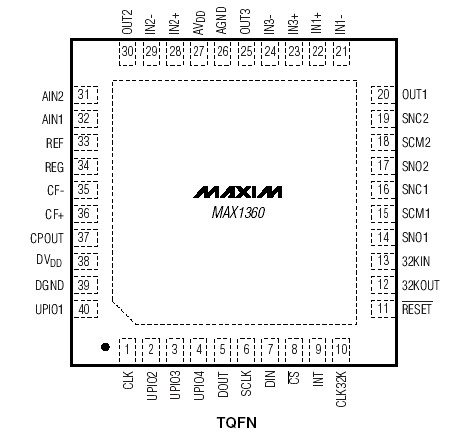

Connection Diagram




Specifications

AVDD to AGND ...........................................................-0.3V to +4V
DVDD to DGND...........................................................-0.3V to +4V
AVDD to DVDD ..............................................................-4V to +4V
AGND to DGND........................................................-0.3V to +0.3V
CLK32K to DGND.......................................-0.3V to (DVDD + 0.3V)
UPIO_ to DGND........................................................-0.3V to +4V
Digital Inputs to DGND ............................................-0.3V to +4V
Analog Inputs to AGND .............................-0.3V to (AVDD + 0.3V)
Digital Output to DGND...........................-0.3V to (DVDD + 0.3V)
Analog Outputs to AGND...........................-0.3V to (AVDD + 0.3V)
Continuous Current Into Any Pin.........................................50mA
Continuous Power Dissipation (TA = +70°C)
40-Pin TQFN (derate 25.6mW/°C above +70°C) ......2051.3mW
Operating Temperature Range
MAX13_ _ CTL ......................................................0°C to +70°C
MAX13_ _ ETL ...................................................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C


Description

The MAX1358/MAX1359/MAX1360 smart data-acquisition systems (DAS) are each based on a 16-bit, sigma-delta analog-to-digital converter (ADC) and system-support functionality for a microprocessor (µP)-based system. These devices integrate an ADC, DACs, operational amplifiers, internal 1.25V/2.048V/2.5V selectable reference, temperature sensors, analog switches, a 32kHz oscillator, a real-time clock (RTC) with alarm, a high-frequency-locked loop (FLL) clock, four user-programmable I/Os, an interrupt generator, and 1.8V and 2.7V  voltage monitors in a single chip.

The MAX1358/MAX1359/MAX1360 have dual 10:1 differential input multiplexers (muxes) that accept signal levels from 0 to AVDD. An on-chip 1x to 8x programmable- gain amplifier (PGA) measures low-level signals and reduces external circuitry required.

The MAX1358/MAX1359/MAX1360 operate from a single +1.8V to +3.6V supply and consume only 1.4mA in normal mode and only 6.1µA in sleep mode.

The MAX1358 has two DACs with one uncommitted op amp; the MAX1359 has one DAC with two uncommitted op amps; and the MAX1360 has three uncommitted op amps.

The serial interface is compatible with either SPI™/QSPI™ or MICROWIRE™, and is used to power up, configure, and check the status of all functional blocks.

The MAX1358/MAX1359/MAX1360 are available in a space-saving 40-pin TQFN package and are specified over the commercial (0°C to +70°C) and the extended (-40°C to +85°C) temperature ranges.
