MAX1343

Features: · 12-Bit, 300ksps ADC Analog Multiplexer with True-Differential Track/Hold (T/H) 8 Single-Ended Channels or 4 Differential Channels (Unipolar or Bipolar) 4 Single-Ended Channels or 2 Differential Channels (Unipolar or Bipolar) Excellent Accuracy: ±0.5 LSB INL, ±0.5 LSB DNL· 12-Bit, Quad,...

product image

MAX1343 Picture
See larger image
SeekIC No. : 004408811 Detail

MAX1343: Features: · 12-Bit, 300ksps ADC Analog Multiplexer with True-Differential Track/Hold (T/H) 8 Single-Ended Channels or 4 Differential Channels (Unipolar or Bipolar) 4 Single-Ended Channels or 2 Diffe...

MAX1343 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1343
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 12-Bit, 300ksps ADC
    Analog Multiplexer with True-Differential
    Track/Hold (T/H)
    8 Single-Ended Channels or 4 Differential
    Channels (Unipolar or Bipolar)
    4 Single-Ended Channels or 2 Differential
    Channels (Unipolar or Bipolar)
    Excellent Accuracy: ±0.5 LSB INL, ±0.5 LSB DNL
· 12-Bit, Quad, 2µs Settling DAC
    Ultra-Low Glitch Energy (4nV•s)
    Power-Up Options from Zero Scale or Full Scale
    Excellent Accuracy: ±0.5 LSB INL
· Internal Reference or External Single-Ended/
    Differential Reference
    Internal Reference Voltage 2.5V or 4.096V
· Internal ±1°C Accurate Temperature Sensor
· On-Chip FIFO Capable of Storing 16 ADC
    Conversion Results and One Temperature Result
· On-Chip Channel-Scan Mode and Internal
    Data-Averaging Features
· Analog Single-Supply Operation
    +2.7V to +3.6V or +4.75V to +5.25V
· 25MHz, SPI/QSPI/MICROWIRE Serial Interface
· AutoShutdown Between Conversions
· Low-Power ADC
    2.5mA at 300ksps
    22µA at 1ksps
    0.2µA at Shutdown
· Low-Power DAC: 1.5µA
· Evaluation Kit Available (Order MAX1258EVKIT)


Application

·Closed-Loop Controls for Optical Components
·and Base Stations
·System Supervision and Control
·Data-Acquisition Systems


Pinout

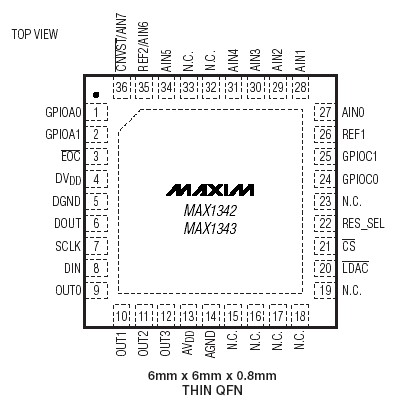

Connection Diagram




Specifications

AVDD to AGND .........................................................-0.3V to +6V
DGND to AGND.......................................................-0.3V to +0.3V
DVDD to AVDD .......................................................-3.0V to +0.3V
Digital Inputs to DGND.............................................-0.3V to +6V
Digital Outputs to DGND ..........................-0.3V to (DVDD + 0.3V)
Analog Inputs, Analog Outputs and REF_
to AGND....................................................-0.3V to (AVDD + 0.3V)
Maximum Current into Any Pin (except AGND, DGND, AVDD,
DVDD, and OUT_) ................................................................50mA
Maximum Current into OUT_..............................................100mA
Continuous Power Dissipation (TA = +70°C)
36-Pin Thin QFN (6mm x 6mm)
(derate 26.3mW/°C above +70°C)............................2105.3mW
Operating Temperature Range .........................-40°C to +85°C
Storage Temperature Range ..........................-60°C to +150°C
Junction Temperature......................................................+150°C
Lead Temperature (soldering, 10s) ................................+300°C


Description

The MAX1340MAX1343/MAX1346MAX1349 integrate a multichannel, 12-bit, analog-to-digital converter (ADC) and a quad, 12-bit, digital-to-analog converter (DAC) in a single IC. The devices also include a temperature sensor and configurable general purpose I/O ports (GPIOs) with a 25MHz SPI™-/QSPI™-/MICROWIRE™-compatible serial interface. The ADC is available in a 4 or an 8 inputchannel version. The four DAC outputs settle within 2.0µs, and the ADC has a 300ksps conversion rate.

The MAX1340MAX1343/MAX1346MAX1349 include an internal reference (2.5V or 4.096V) providing a well-regulated, low-noise reference for both the ADC and DAC. Programmable reference modes for the ADC and DAC allow the use of an internal reference, an external reference, or a combination of both. Features such as an internal ±1°C accurate temperature sensor, FIFO, scan modes, programmable internal or external clock modes, data averaging, and AutoShutdown™ allow users to minimize both power consumption and processor requirements. The low glitch energy (4nV•s) and low digital feedthrough (0.5nV•s) of the integrated quad DACs make these devices ideal for digital control of fastresponse closed-loop systems.

The devices are guaranteed to operate with a supply voltage from +2.7V to +3.6V (MAX1341/MAX1343/MAX1347/ MAX1349) and from +4.5V to +5.5V (MAX1340/MAX1342/ MAX1346/MAX1348). The devices consume 2.5mA at 300ksps throughput, only 22µA at 1ksps throughput, and under 0.2µA in the shutdown mode. The MAX1342/ MAX1343/MAX1348/MAX1349 offer four GPIOs that can be configured as inputs or outputs.

The MAX1340MAX1343/MAX1346MAX1349 are available in 36-pin thin QFN packages. All devices are specified over the -40°C to +85°C temperature range.
