MAX1336

Features: · 6.5Msps Sampling Rate (+5V, MAX1336)· 5.5Msps Sampling Rate (+3V, MAX1337)· Separate Logic Supply: +2.7V to +3.6V· Two True-Differential Analog Input Channels· Bipolar/Unipolar Selection Input· Only 40mW (typ) Power Consumption· Only 2µA (max) Shutdown Current· High-Speed, SPI-Co...

product image

MAX1336 Picture
See larger image
SeekIC No. : 004408804 Detail

MAX1336: Features: · 6.5Msps Sampling Rate (+5V, MAX1336)· 5.5Msps Sampling Rate (+3V, MAX1337)· Separate Logic Supply: +2.7V to +3.6V· Two True-Differential Analog Input Channels· Bipolar/Unipolar Selection...

MAX1336 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1336
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 6.5Msps Sampling Rate (+5V, MAX1336)
· 5.5Msps Sampling Rate (+3V, MAX1337)
· Separate Logic Supply: +2.7V to +3.6V
· Two True-Differential Analog Input Channels
· Bipolar/Unipolar Selection Input
· Only 40mW (typ) Power Consumption
· Only 2µA (max) Shutdown Current
· High-Speed, SPI-Compatible, 3-Wire Serial Interface
· 6.6MHz Full-Linear Bandwidth
· 49.5dB SINAD at 525kHz Input Frequency
· No Pipeline Delays
· Space-Saving (3mm x 3mm), 16-Pin, TQFN Package


Application

·Data Acquisition
·Bill Validation
·Motor Control
·Base Stations
·High-Speed Modems
·Optical Sensors
·Industrial Process Control


Pinout

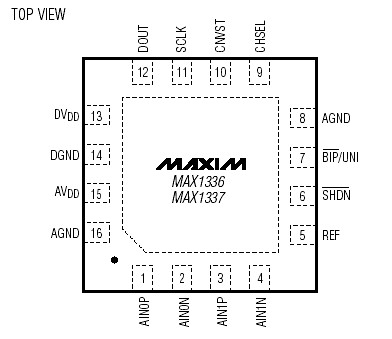

Connection Diagram


Specifications

AVDD to AGND (MAX1336) ........................................-0.3V to +6V
AVDD to AGND (MAX1337) ........................................-0.3V to +4V
DVDD to DGND...........................................................-0.3V to +4V
AGND to DGND........................................................-0.3V to +0.3V
SCLK, CNVST, SHDN, CHSEL, BIP/UNI,
DOUT to DGND .........................................-0.3V to (DVDD + 0.3V)
AIN0P, AIN0N, AIN1P, AIN1N, REF to
AGND.........................................................-0.3V to (AVDD + 0.3V)
Maximum Current into Any Pin .........................................±50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin TQFN (derate 17.5mW/°C above +70°C) ......1398.6mW
Operating Temperature Range
MAX133_ETE .....................................................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ..........................-60°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C


Description

The MAX1336/MAX1337 2-channel, serial-output, 8-bit, analog-to-digital converters (ADCs) feature two true-differential analog inputs and offer outstanding noise immunity and dynamic performance. Both devices easily interface with SPI™/QSPI™/MICROWIRE™ and standard digital signal processors (DSPs).

The MAX1336 operates from a single supply of +4.75V to +5.25V with sampling rates up to 6.5Msps. The MAX1337 operates from a single supply of +2.7V to +3.6V with sampling rates up to 5.5Msps. These devices feature a partial power-down mode and a full power-down mode that reduce the supply current to 3.3mA and 0.2µA, respectively. Also featured is a separate power supply input (DVDD) that allows direct interfacing to +2.7V to +3.6V digital logic. The fast conversion speed, low power dissipation, excellent AC performance, and DC accuracy (±0.1 LSB INL) make the MAX1336/MAX1337 ideal for industrial process control, motor control, and base-station applications.

The MAX1336/MAX1337 are available in a space-saving (3mm x 3mm), 16-pin, TQFN package and operate over the extended (-40°C to +85°C) temperature range.
