MAX1332

Features: ♦ 3Msps Sampling Rate (+5V, MAX1332)♦ 2Msps Sampling Rate (+3V, MAX1333)♦ Separate Logic Supply: +2.7V to +3.6V♦ Two True-Differential Analog Input Channels♦ Bipolar/Unipolar Selection Input♦ Only 38mW (typ) Power Consumption♦ Only 2µA (max...

product image

MAX1332 Picture
See larger image
SeekIC No. : 004408798 Detail

MAX1332: Features: ♦ 3Msps Sampling Rate (+5V, MAX1332)♦ 2Msps Sampling Rate (+3V, MAX1333)♦ Separate Logic Supply: +2.7V to +3.6V♦ Two True-Differential Analog Input Channels♦ ...

MAX1332 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1332
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

♦ 3Msps Sampling Rate (+5V, MAX1332)
♦ 2Msps Sampling Rate (+3V, MAX1333)
♦ Separate Logic Supply: +2.7V to +3.6V
♦ Two True-Differential Analog Input Channels
♦ Bipolar/Unipolar Selection Input
♦ Only 38mW (typ) Power Consumption
♦ Only 2µA (max) Shutdown Current
♦ High-Speed, SPI-Compatible, 3-Wire Serial Interface
♦ 2MHz Full-Linear Bandwidth
♦ 71.4dB SINAD and -93dB THD at 525kHz Input Frequency
♦ No Pipeline Delays
♦ Space-Saving (3mm x 3mm), 16-Pin, TQFN Package


Application

Data Acquisition
Bill Validation
Motor Control
Base Stations
High-Speed Modems
Optical Sensors
Industrial Process Control


Pinout

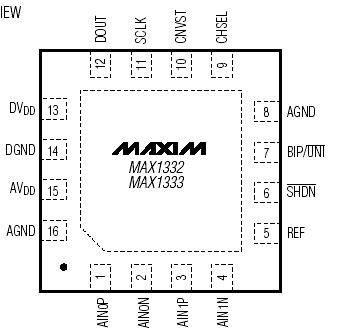

Connection Diagram


Specifications

AVDD to AGND (MAX1332) ......................................-0.3V to +6V
AVDD to AGND (MAX1333) ......................................-0.3V to +4V
DVDD to DGND.........................................................-0.3V to +4V
AGND to DGND......................................................-0.3V to +0.3V
SCLK, CNVST, SHDN, CHSEL, BIP/UNI,
DOUT to DGND ........................................-0.3V to (DVDD + 0.3V)
AIN0P, AIN0N, AIN1P, AIN1N, REF to
AGND........................................................-0.3V to (AVDD + 0.3V)
Maximum Current into Any Pin .........................................±50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin TQFN (derate 17.5mW/°C above +70°C) ........1398.6mW
Operating Temperature Range
MAX133_ETE ......................................................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ............................-60°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C


Description

The MAX1332/MAX1333 2-channel, serial-output, 12-bit, analog-to-digital converters (ADCs) feature two true-differential analog inputs and offer outstanding noise immunity and dynamic performance. Both devices easily interface with SPI™/QSPI™/MICROWIRE™ and standard digital signal processors (DSPs).

The MAX1332 operates from a single supply of +4.75V to +5.25V with sampling rates up to 3Msps. The MAX1333 operates from a single supply of +2.7V to +3.6V with sampling rates up to 2Msps. These devices feature a partial power-down mode and a full powerdown mode that reduce the supply current to 3.3mA and 0.2µA, respectively. Also featured is a separate power supply input (DVDD) that allows direct interfacing to +2.7V to +3.6V digital logic. The fast conversion speed, low power dissipation, excellent AC performance, and DC accuracy (±0.6 LSB INL) make the MAX1332/MAX1333 ideal for industrial process control, motor control, and base-station applications.

The MAX1332/MAX1333 are available in a space-saving (3mm x 3mm), 16-pin, TQFN package and operate over the extended (-40°C to +85°C) temperature range.
