Features: ♦ 8-/4-/2-Channel, 14-Bit ADCs
±1.5 LSB INL, ±1 LSB DNL, No Missing Codes
90dBc SFDR, -86dBc THD, 76.5dB SINAD, 77dB
SNR at 100kHz Input
♦ On-Chip T/H Circuit for Each Channel
10ns Aperture Delay
50ps Channel-to-Channel T/H Matching
♦ Fast Conversion Time
One Channel in 1.6µs
Two Channels in 1.9µs
Four Channels in 2.5µs
Eight Channels in 3.7µs
♦ High Throughput
526ksps/ch for One Channel
455ksps/ch for Two Channels
357ksps/ch for Four Channels
250ksps/ch for Eight Channels
♦ Flexible Input Ranges
0 to +5V (MAX1316/MAX1317/MAX1318)
±5V (MAX1320/MAX1321/MAX1322)
±10V (MAX1324/MAX1325/MAX1326)
♦ No Calibration Needed
♦ 14-Bit, High-Speed, Parallel Interface
♦ Internal or External Clock
♦ +2.5V Internal Reference or +2.0V to +3.0V External Reference
♦ +5V Analog Supply, +3V to +5V Digital Supply
46mA Analog Supply Current (typ)
1.6mA Digital Supply Current (max)
Shutdown and Power-Saving Modes
♦ 48-Pin TQFP Package (7mm ✕ 7mm Footprint)Application Multiphase Motor Control
Power-Grid Synchronization
Power-Factor Monitoring and Correction

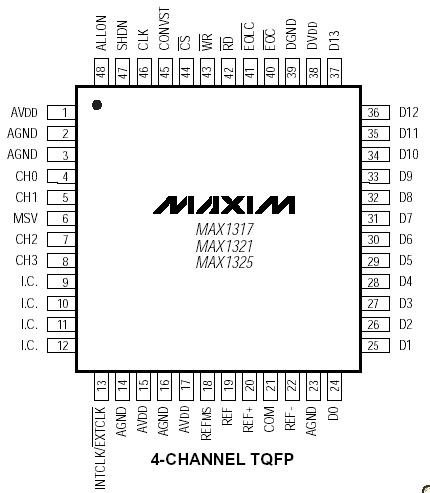

Vibration and Waveform AnalysisPinout
SpecificationsAVDD to AGND ..........................................................-0.3V to +6V
DVDD to DGND..........................................................-0.3V to +6V
AGND to DGND.......................................................-0.3V to +0.3V
CH0CH7, I.C. to AGND (MAX1316/MAX1317/MAX1318).....±6.0V
CH0CH7, I.C. to AGND (MAX1320/MAX1321/MAX1322)...±16.5V
CH0CH7, I.C. to AGND (MAX1324/MAX1325/MAX1326)...±16.5V
INTCLK/EXTCLK to AGND...........................-0.3V to (AVDD + 0.3V)
EOC, EOLC, WR, RD, CS to DGND.............-0.3V to (DVDD + 0.3V)
CONVST, CLK, SHDN,
ALLON to DGND........................................-0.3V to (DVDD + 0.3V)
MSV, REFMS, REF to AGND.........................-0.3V to (AVDD + 0.3V)
REF+, COM, REF- to AGND.........................-0.3V to (AVDD + 0.3V)
D0D13 to DGND ......................................-0.3V to (DVDD + 0.3V)
Maximum Current into Any Pin Except AVDD, DVDD,
AGND, DGND......................................................................±50mA
Continuous Power Dissipation
TQFP (derate 22.7mW/°C above +70°C)........................1818mW
Operating Temperature Range ...........................-40°C to +85°C
Junction Temperature.......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) ..................................+300°C
DescriptionThe MAX1317 14-bit, analog-to-digital converters (ADCs) offer two, four, or eight independent input channels. Independent track/hold (T/H) circuitry provides simultaneous sampling for each channel. The MAX1316/ MAX1317/MAX1318 have a 0 to +5V input range with ±6.0V fault-tolerant inputs. The MAX1320/MAX1321/ MAX1322 have a ±5V input range with ±16.5V fault-tolerant inputs. The MAX1324/MAX1325/MAX1326 have a ±10V input range with ±16.5V fault-tolerant inputs. These ADCs convert two channels in 2µs, and up to eight channels in 3.8µs, and have an 8-channel throughput of 250ksps per channel. Other features include a 10MHz T/H input bandwidth, internal clock, internal (+2.5V) or external (+2.0V to +3.0V) reference, and powersaving modes.
A 16.6MHz, 14-bit, bidirectional, parallel interface provides the conversion results and accepts digital configuration inputs.
These MAX1317 operate from a +4.75V to +5.25V analog supply and a separate +2.7V to +5.25V digital supply, and consume less than 50mA total supply current.
These devices come in a 48-pin TQFP package and operate over the extended -40°C to +85°C temperature range.
MAX1317 Data Sheet
