Product Details

Description



Features:

` ±1 LSB INL, ±0.9 LSB DNL (max)
` 84dBc SFDR, -86dBc THD, 71dB SINAD,fIN = 500kHz at -0.4dBFS
` Extended Input Ranges 0 to +5V (MAX1307)  -5V to +5V (MAX1311) -10V to +10V (MAX1315)
` Fault-Tolerant Inputs ±6V (MAX1307) ±16.5V (MAX1311/MAX1315)
` Fast 0.72s Conversion Time
` 12-Bit, 20MHz Parallel Interface
` Internal or External Clock
` +2.5V Internal Reference or +2.0V to +3.0V External Reference
` +5V Analog Supply, +3V to +5V Digital Supply 36mA Analog Supply Current 1.3mA Digital Supply Current Shutdown Mode
` 48-Pin TQFP Package (7mm x 7mm Footprint



Application

·Industrial Process Control and Automation
·Vibration and Waveform Analysis
·Data-Acquisition Systems

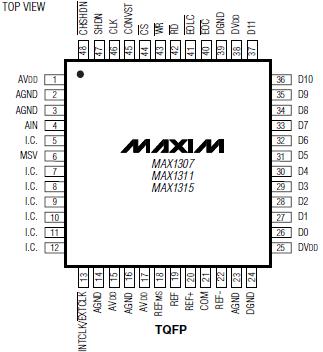

Pinout

  Connection Diagram


Specifications

AVDD to AGND ........................................................-0.3V to +6V
DVDD to DGND........................................................-0.3V to +6V
AGND to DGND.....................................................-0.3V to +0.3V
CH0, I.C. to AGND (MAX1307) .............................................±6V
CH0, I.C. to AGND (MAX1311)  .......................................±16.5V
CH0, I.C. to AGND (MAX1315) .......................................±16.5V
D0D11 to DGND ..................................-0.3V to (DVDD + 0.3V)
EOC, EOLC, RD, WRCS to DGND............-0.3V to (DVDD + 0.3V)
CONVST, CLK, SHDN, CHSHDN to DGND..-0.3V to (DVDD + 0.3V)
INTCLK/EXTCLK to AGND.........................-0.3V to (AVDD + 0.3V)
REFMS, REF, MSV to AGND.......................-0.3V to (AVDD + 0.3V)
REF+, COM, REF- to AGND.......................-0.3V to (AVDD + 0.3V)
Maximum Current into Any Pin Except AVDD,
DVDD, AGND, DGND.........................................................±50mA
Continuous Power Dissipation (TA = +70)
TQFP (derate 22.7mW/ above +70).....................1818.2mW
Operating Temperature Range ............................-40 to +85
Junction Temperature.......................................................+150
Storage Temperature Range .............................-65 to +150
Lead Temperature (soldering, 10s) .................................+300
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability



Description

The MAX1307/MAX1311/MAX1315 12-bit, analog-to-digital converters (ADCs) feature a 1075ksps sampling rate, a 20MHz input bandwidth, and three analog input ranges.The MAX1307 provides a 0 to +5V input range, with ±6V fault-tolerant inputs. The MAX1311 provides a ±5V input range with ±16.5V fault-tolerant inputs. The MAX1315 provides a ±10V input range with ±16.5V fault-tolerant inputs.

The MAX1307/MAX1311/MAX1315 include an on-chip 2.5V reference. These devices also accept an external +2V to +3V reference.

All devices operate from a +4.75 to +5.25V analog supply,and a +2.7V to +5.25V digital supply. The devices consume 36mA total supply current when fully operational.A 0.62A shutdown mode is available to save
power during idle periods.

A 20MHz, 12-bit, parallel data bus provides the conversion results. An internal 15MHz oscillator, or an externally applied clock, drives conversions.

Each device is available in a 48-pin 7mm x 7mm TQFP package and operates over the extended (-40 to +85) temperature range.
