MAX1305

Features: ♦ Up to Eight Channels of Simultaneous Sampling8ns Aperture Delay 100ps Channel-to-Channel T/H Match♦ Extended Input Ranges 0 to +5V (MAX1304/MAX1305/MAX1306) -5V to +5V (MAX1308/MAX1309/MAX1310)-10V to +10V (MAX1312/MAX1313/MAX1314)♦ Fast Conversion TimeOne Channel in ...

product image

MAX1305 Picture
See larger image
SeekIC No. : 004408757 Detail

MAX1305: Features: ♦ Up to Eight Channels of Simultaneous Sampling8ns Aperture Delay 100ps Channel-to-Channel T/H Match♦ Extended Input Ranges 0 to +5V (MAX1304/MAX1305/MAX1306) -5V to +5V (MAX13...

MAX1305 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1305
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

♦ Up to Eight Channels of Simultaneous Sampling
       8ns Aperture Delay
      100ps Channel-to-Channel T/H Match
♦ Extended Input Ranges
      0 to +5V (MAX1304/MAX1305/MAX1306)
      -5V to +5V (MAX1308/MAX1309/MAX1310)
      -10V to +10V (MAX1312/MAX1313/MAX1314)
♦ Fast Conversion Time
      One Channel in 0.72µs
      Two Channels in 0.9µs
      Four Channels in 1.26µs
      Eight Channels in 1.98µs
♦ High Throughput
     1075ksps/Channel for One Channel
     901ksps/Channel for Two Channels
     680ksps/Channel for Four Channels
     456ksps/Channel for Eight Channels
♦ ±1 LSB INL, ±0.9 LSB DNL (max)
♦ 84dBc SFDR, -86dBc THD, 71dB SINAD, fIN = 500kHz at 0.4dBFS
♦ 12-Bit, 20MHz, Parallel Interface
♦ Internal or External Clock
♦ +2.5V Internal Reference or +2.0V to +3.0V External Reference
♦ +5V Analog Supply, +3V to +5V Digital Supply
       55mA Analog Supply Current
       1.3mA Digital Supply Current
       Shutdown and Power-Saving Modes
♦ 48-Pin TQFP Package (7mm x 7mm Footprint)


Application

SIN/COS Position Encoder
Multiphase Motor Control
Multiphase Power Monitoring
Power-Grid Synchronization
Power-Factor Monitoring
Vibration and Waveform Analysis


Pinout

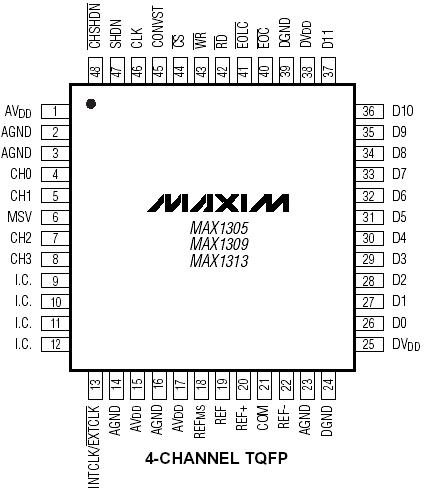

Connection Diagram


Specifications

AVDD to AGND .........................................................-0.3V to +6V
DVDD to DGND.........................................................-0.3V to +6V
AGND to DGND......................................................-0.3V to +0.3V
CH0CH7, I.C. to AGND (MAX1304/MAX1305/MAX1306).......±6V
CH0CH7, I.C. to AGND (MAX1308/MAX1309/MAX1310)..±16.5V
CH0CH7, I.C. to AGND (MAX1312/MAX1313/MAX1314)..±16.5V
D0D11 to DGND ....................................-0.3V to (DVDD + 0.3V)
EOC, EOLC, RD, WR, CS to DGND............-0.3V to (DVDD + 0.3V)
CONVST, CLK, SHDN, CHSHDN to DGND ..-0.3V to (DVDD + 0.3V)
INTCLK/EXTCLK to AGND..........................-0.3V to (AVDD + 0.3V)
REFMS, REF, MSV to AGND........................-0.3V to (AVDD + 0.3V)
REF+, COM, REF- to AGND........................-0.3V to (AVDD + 0.3V)
Maximum Current into Any Pin Except AVDD, DVDD, AGND,
DGND ..............................................................................±50mA
Continuous Power Dissipation (TA = +70°C)
TQFP (derate 22.7mW/°C above +70°C)...................1818.2mW
Operating Temperature Range .........................-40°C to +85°C
Junction Temperature.....................................................+150°C
Storage Temperature Range ...........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C


Description

The MAX1305 12-bit, analog-to-digital converters (ADCs) offer eight, four, or two independent input channels. Independent track-and-hold (T/H) circuitry provides simultaneous sampling for each channel. The MAX1304/ MAX1305/MAX1306 provide a 0 to +5V input range with ±6V fault-tolerant inputs. The MAX1308/MAX1309/ MAX1310 provide a ±5V input range with ±16.5V fault-tolerant inputs. The MAX1312/MAX1313/MAX1314 have a ±10V input range with ±16.5V fault-tolerant inputs. These ADCs convert two channels in 0.9µs, and up to eight channels in 1.98µs, with an 8-channel throughput of 456ksps per channel. Other features include a 20MHz T/H input bandwidth, internal clock, internal (+2.5V) or external (+2.0V to +3.0V) reference, and power-saving modes.

A 20MHz, 12-bit, bidirectional parallel data bus provides the conversion results and accepts digital inputs that activate each channel individually.

MAX1305 operate from a +4.75V to +5.25V analog supply and a +2.7V to +5.25V digital supply and consume 57mA total supply current when fully operational.

MAX1305 is available in a 48-pin 7mm x 7mm TQFP package and operates over the extended -40°C to +85°C temperature range.
