Features: `Monolithic 14-Bit, 2.2Msps ADC
`Signal-to-Noise Ratio of 83dB
`Spurious-Free Dynamic Range of 91dB
`Differential Nonlinearity Error: ±0.3LSB
`Integral Nonlinearity Error: ±1.2LSB
`Single +5V Analog Supply, +3V Digital Supply
`Low Power Dissipation: 269mW
`On-Demand Self-Calibration
`Three-State, Two's Complement Output DataApplication·xDSL
·Instrumentation
·Medical Imaging
·Scanners
·IR Imaging

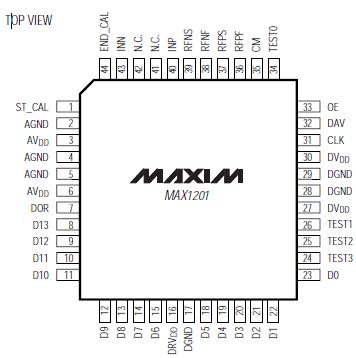

·Spectrum AnalysisPinout
SpecificationsAVDD to AGND, DGND........................................................+7V
DVDD to DGND, AGND........................................................+7V
DRVDD to DGND, AGND .....................................................+7V
INP, INN, RFPF, RFPS,
RFNF, RFNS, CLK, CM................(AGND - 0.3V) to (AVDD + 0.3V)
Digital Inputs to DGND .........................-0.3V to (DVDD + 0.3V)
Digital Output (DAV) to DGND .............-0.3V to (DRVDD + 0.3V)
Other Digital Outputs to DGND ...........-0.3V to (DRVDD + 0.3V)
Continuous Power Dissipation (TA = +70°C)
44-Pin MQFP (derate 11.11mW/°C above +70°C)......889mW
Operating Temperature Ranges (TA)
MAX1201CMH ....................................................0°C to +70°C
MAX1201EMH .................................................-40°C to +85°C
Storage Temperature Range ........................-65°C to +160°C
Lead Temperature (soldering, 10sec) ..........................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe MAX1201 is a 14-bit, monolithic, analog-to-digital converter (ADC) capable of conversion rates up to 2.2Msps. This integrated circuit, built on a CMOS process, uses a fully differential, pipelined architecture with digital error correction and a short self-calibration procedure that corrects for capacitor and gain mismatches and ensures 14-bit linearity at full sample rates. An on-chip track-and-hold (T/H) maintains superb dynamic performance up to the Nyquist frequency.
The MAX1201 operates from a single +5V supply.
The fully differential inputs allow an input swing of ±VREF. A single-ended input is also possible using two operational amplifiers. The reference is also differential with the positive reference (RFPF) typically connected to +4.096V and the negative reference (RFNF) tied to analog ground. Additional sensing pins (RFPS, RFNS) are provided to compensate for any resistive divider action that may occur due to finite internal and external resistances.
The power dissipation is typically only 269mW at +5V and a sampling rate of 2.2Msps. The device employs a CMOS compatible, 14-bit parallel, two's complement output data format. The MAX1201 is available in a 44-pin MQFP package and is specified over the commercial temperature (0°C to +70°C) and extended (-40°C to +85°C) temperature ranges.
MAX1201 Data Sheet
