MAX1192

 Ultra-Low Power 27.3mW (Normal Operation: 22Msps) 1.8µW (Shutdown Mode)
Excellent Dynamic Performance 48.6dB/47.2dB SNR at fIN = 5.5MHz/125MHz 70dBc/69dBc SFDR at fIN = 5.5MHz/125MHz
2.7V to 3.6V Single Analog Supply
1.8V to 3.6V TTL/CMOS-Compatible Digital Outputs
Fully Differential or Single-Ended Analog Inputs
Internal/External Reference Option
Multiplexed CMOS-Compatible Tri-State Outputs

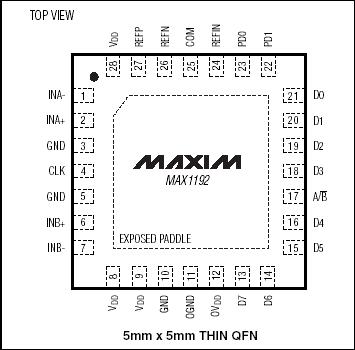

28-Pin Thin QFN Package
Evaluation Kit Available (Order MAX1193EVKIT)

Ultrasound and Medical Imaging
IQ Baseband Sampling
Battery-Powered Portable Instruments
Low-Power Video
WLAN, Mobile DSL, WLL Receiver

V_DD, OV_DD to GND ...............................................-0.3V to +3.6V
OGND to GND.......................................................-0.3V to +0.3V
INA+, INA-, INB+, INB- to GND .................-0.3V to (V_DD + 0.3V)
CLK, REFIN, REFP, REFN, COM to GND...-0.3V to (V_DD + 0.3V)
PD0, PD1 to OGND .................................-0.3V to (OV_DD + 0.3V)
Digital Outputs to OGND.........................-0.3V to (OV_DD + 0.3V)
Continuous Power Dissipation (T_A = +70°C)
28-Pin Thin QFN (derated 20.8mW/°C above +70°C) ..1667mW
Operating Temperature Range ...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C

The MAX1192 is an ultra-low-power, dual, 8-bit, 22Msps analog-to-digital converter (ADC). The device features two fully differential wideband track-and-hold (T/H) inputs. These inputs have a 440MHz bandwidth and accept fully differential or single-ended signals. The MAX1192 delivers a typical signal-to-noise and distortion (SINAD) of 48.6dB at an input frequency of 5.5MHz and a sampling rate of 22Msps while consuming only 27.3mW. This ADC operates from a 2.7V to 3.6V analog power supply. A separate 1.8V to 3.6V supply powers the digital output driver. In addition to ultra-low operating power, the MAX1192 features three power-down modes to conserve power during idle periods. Excellent dynamic performance, ultra-low power, and small size make the device ideal for applications in imaging, instrumentation, and digital communications.

An internal 1.024V precision bandgap reference sets the full-scale range of the ADC to ±0.512V. A flexible reference structure allows the MAX1192 to use its internal reference or accept an externally applied reference for applications requiring increased accuracy.

The MAX1192 features parallel, multiplexed, CMOScompatible tri-state outputs. The digital output format is offset binary. A separate digital power input accepts a voltage from 1.8V to 3.6V for flexible interfacing to different logic levels. The  device is available in a 5mm * 5mm, 28-pin thin QFN package, and is specified for the extended industrial (-40°C to +85°C) temperature range.

For higher sampling frequency applications, refer to the MAX1195MAX1198 dual 8-bit ADCs. Pin-compatible versions of the MAX1192 are also available. Refer to the MAX1191 data sheet for 7.5Msps, and the MAX1193 data sheet for 45Msps.
