Product Details

Description

Features:

* 16-Bit Wide (MAX1165) and Byte Wide (MAX1166)
    Parallel Interface
* High Speed: 165ksps Sample Rate
* Accurate: ±2LSB INL, 16 Bit No Missing Codes
* 4.096V, 35ppm/°C Internal Reference
* External Reference Range: +3.8V to +5.25V
* Single +4.75V to +5.25V Analog Supply Voltage
* +2.7V to +5.25V Digital Supply Voltage
* Low Supply Current
   1.8mA (External Reference)
   2.7mA (Internal Reference)
   0.1µA (10ksps, External Reference)
* Small Footprint
   28-Pin TSSOP Package (16-Bit Wide)
   20-Pin TSSOP Package (Byte Wide)

Application

Temperature Sensor/Monitor
Industrial Process Control
I/O Boards
Data-Acquisition Systems
Cable/Harness Tester
Accelerometer Measurements
Digital Signal Processing

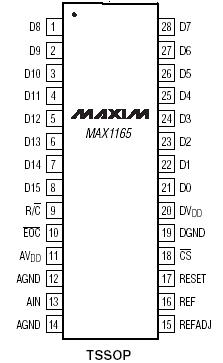

Pinout

Connection Diagram

Specifications

AV_DD to AGND ..............................................................-0.3V to +6V
DV_DD to DGND .............................................-0.3V to (AV_DD + 0.3V)
AGND to DGND...........................................................-0.3V to +0.3V
AIN, REF, REFADJ to AGND............................-0.3V to (AV_DD + 0.3V)
CS, HBEN, R/C, RESET to DGND ...................................-0.3V to +6V
Digital Output (D15D0, EOC)
   to DGND ....................................................-0.3V to (DV_DD + 0.3V)
Maximum Continuous Current Into Any Pin ............................50mA
Continuous Power Dissipation (T_A = +70)
   20-Pin TSSOP (derate 10.9mW/ above+70) ...............879mW
   28-Pin TSSOP (derate 12.8mW/ above +70) ............1026mW
Operating Temperature Ranges
   MAX116_ _CU_...........................................................0 to +70
   MAX116_ _EU_ .......................................................-40 to +85
Storage Temperature Range ...................................-65 to +150
Junction Temperature............................................................+150
Lead Temperature (soldering, 10s) ......................................+300

Description

The MAX1165/MAX1166 16-bit, low-power, successiveapproximation analog-to-digital converters (ADCs) feature automatic power-down, factory-trimmed internal clock, and a 16-bit wide (MAX1165) or byte wide (MAX1166) parallel interface. The devices operate from a single +4.75V to +5.25V analog supply and a +2.7V to +5.25V digital supply.

The MAX1165/MAX1166 use an internal 4.096V reference or an external reference. The devices consume only 1.8mA at a sampling rate of 165ksps with external reference and 2.7mA with internal reference. AutoShutdown™ reduces supply current to 0.1mA at 10ksps.

The MAX1165/MAX1166 are ideal for high-performance, battery-powered, data-acquisition applications. Excellent dynamic performance and low power consumption in a small package make the devices ideal for circuits with demanding power consumption and space requirements.

The 16-bit wide MAX1165 is available in a 28-pin TSSOP package and the byte wide MAX1166 is available in a 20-pin TSSOP package. Both devices are available in either the 0°C to +70°C commercial, or the -40°C to +85°C extended temperature range.
