MAX1161

Features:

Monolithic 40Msps Converter
On-Chip Track/Hold
Bipolar, ±2V Analog Input
57dB SNR at 3.58MHz Input
5pF Input Capacitance
TTL Outputs


Application

Medical Imaging
Professional Video
Radar Receivers
Instrumentation
Digital Communications

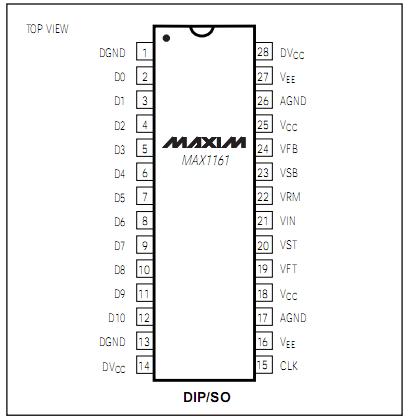

Pinout




Specifications

VCC ........................................................................................+6V
VEE ..........................................................................................-6V
Analog Input.......................................................VFB VIN VFT
VFT, VFB ...........................................................................3V, -3V
Reference-Ladder Current..................................................12mA
CLK Input...............................................................................VCC
Digital Outputs.....................................................30mA to -30mA
Continuous Power Dissipation (TA = +70°C)
Plastic DIP........................................................................  1.14W
SO ......................................................................................... 1W
Operating Temperature Range...............................0°C to +70°C
Junction Temperature......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10sec). ............................+300°C


Description

The MAX1161 10-bit, monolithic analog-to-digital converter (ADC) is capable of 40Msps minimum word rates. An on-board track/hold ensures excellent dynamic performance without the need for external components. A 5pF input capacitance minimizes drive requirement problems.

Inputs and outputs are TTL compatible. An overrange output is provided to indicate overflow conditions. Output data format is straight binary. Power dissipation is low at only 1W with +5V and -5.2V power-supply voltages. The MAX1161 also accepts wide, ±2V input voltages. The MAX1161 is available in 28-pin DIP and SO packages in the commercial temperature range.
