Features:

Monolithic 20Msps Converter
On-Chip Track/Hold
Bipolar, ±2V Analog Input
60dB SNR at 1MHz Input
5pF Input Capacitance
TTL Outputs


Application

Medical Imaging
Professional Video
Radar Receivers
Instrumentation
Digital Communications


Pinout

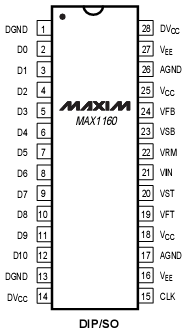

Connection Diagram


Specifications

VCC...........................................................................................6V       Continuous Power Dissipation (TA = +70)
VEE..........................................................................................-6V        Plastic DIP......................................................................1.14W
Analog Input......................................................VFB VIN VFT        SO.......................................................................................1W
VFT, VFB............................................................................3V, -3V        Operating Temperature Range..............................0 to +70
Reference-Ladder Current...................................................12mA        Junction Temperature ...................................................+150
CLK Input...............................................................................VCC        Storage Temperature Range............................-65 to +150
Digital Outputs......................................................30mA to -30mA        Lead Temperature (soldering, 10sec)...........................+300


Description

The MAX1160 10-bit, monolithic analog-to-digital con-verter (ADC) is capable of 20Msps minimum word rates. An on-board track/hold ensures excellent dynam-ic performance without the need for external compo-nents. A 5pF input capacitance minimizes drive requirement problems.Inputs and outputs are TTL compatible. An overrange output is provided to indicate overflow conditions. Output data format is straight binary. Power dissipation is low at only 1W with +5V and -5.2V power-supply voltages. The MAX1160 also accepts wide ±2V input voltages.

The MAX1160 is available in 28-pin DIP and SO pack-ages in the commercial temperature range.
