Features:

` Single +5V Supply Operation
` 4 (MAX114) or 8 (MAX118) Analog Input Channels
` Low Power: 40mW (operating mode)
                       5W (power-down mode)
` Total Unadjusted Error 1LSB
` Fast Conversion Time: 660ns per Channel
` No External Clock Required
` Internal Track/Hold
`1MHz Full-Power Bandwidth
` Internally Connected 8th Channel Monitors Reference Voltage (MAX118)



Application

·High-Speed DSP
·Remote Data Acquisition
·Portable Equipment
·Communications Systems



Pinout

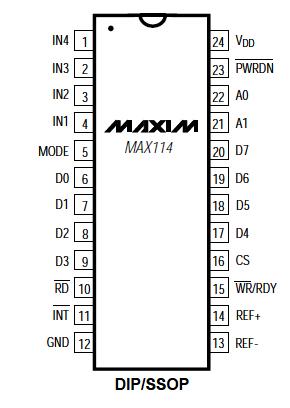

  Connection Diagram


Specifications

VDD to GND............................................................-0.3V to +7V
Digital Input Voltage to GND ..................... -0.3V to (VDD + 0.3V)
Digital Output Voltage to GND ...................-0.3V to (VDD + 0.3V)
REF+ to GND............................................-0.3V to (VDD + 0.3V)
REF- to GND.............................................-0.3V to (VDD + 0.3V)
IN_ to GND ............................................. -0.3V to (VDD + 0.3V)
Continuous Power Dissipation (TA = +70)
    24-Pin Narrow Plastic DIP
    (derate 13.33mW/ above +70)...............................1.08W
    24-Pin SSOP (derate 8.00mW/ above +70)...........640mW
    24-Pin Narrow CERDIP
    (derate 12.50mW/ above +70)....................................1W
    28-Pin Wide Plastic DIP
    (derate 14.29mW/ above +70).............................. 1.14W
    28-Pin SSOP (derate 9.52mW/ above +70).......... 762mW
    28-Pin Wide CERDIP
    (derate 16.67mW/ above +70)..............................1.33W
Operating Temperature Ranges
    MAX114/MAX118C_ _....................................... 0 to +70
    MAX114/MAX118E_ _.................................... -40 to +85
    MAX114/MAX118M_ _ .................................-55 to +125
Storage Temperature Range .............................-65 to +150
Lead Temperature (soldering, 10sec) .............................+300



Description

The MAX114/MAX118 are microprocessor-compatible, 8-bit, 4-channel and 8-channel analog-to-digital converters (ADCs). They operate from a single +5V supply and use a half-flash technique to achieve a 660ns conversion time (1Msps). A power-down (PWRDN) pin reduces current consumption typically to 1A. The devices return from power-down mode to normal operating mode in less than 200ns, allowing large supplycurrent reductions in burst-mode applications (in burst mode, the ADC wakes up from a low-power state at specified intervals to sample the analog input signals). Both converters include a track/hold, enabling the ADC to digitize fast analog signals.

Microprocessor (P) interfaces are simplified because the ADC can appear as a memory location or I/O port without external interface logic. The data outputs use latched, three-state buffer circuitry for direct connection to an 8-bit parallel P data bus or system input port. The MAX114/MAX118 input/reference configuration enables ratiometric operation.

The 4-channel MAX114 is available in a 24-pin DIP or SSOP. The 8-channel MAX118 is available in a 28-pin DIP or SSOP. For +3V applications, refer to the MAX113/MAX117 data sheet.
