MAX1125

Negative Supply Voltage (V_EE TO GND) ..............-7.0V to +0.5V
Ground Voltage Differential ...............................-0.5V to +0.5V
Analog Input Voltage ............................................V_EE to +0.5V
Reference Input Voltage .......................................V_EE to +0.5V
Digital Input Voltage .............................................V_EE to +0.5V
Reference Current V_RTF to V_RBF........................................25mA
Digital Output Current .........................................0mA to -30mA
Operating Temperature Range ......................-25°C to +85°C
Junction Temperature...................................................+150°C
Storage Temperature Range ........................-65°C to +150°C
Lead Temperature (soldering, 10sec). .........................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The MAX1125 is a monolithic, flash analog-to-digital converter (ADC) capable of digitizing a 2V analog input signal into 8-bit digital words at a typical 300Msps update rate.For most applications, no external sample-and-hold is  required for accurate conversion due to the device's narrow aperture time, wide bandwidth, and low input capacitance. A single standard -5.2V power supply is required to operate the MAX1125, with nominal 2.2W power dissipation. A special decoding scheme reduces metastable errors to 1LSB.

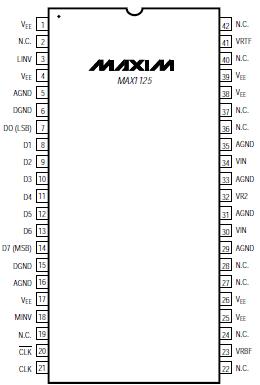

The part is packaged in a 42-pin ceramic sidebraze that is pin compatible with the CX20116 and CX41396D. The surface-mount 44-pin CERQUAD package allows access to additional reference ladder taps,an overrange bit, and a data-ready output. The pincompatible 150Msps MAX1114 is also available.
