MAX1123

AVCC to AGND ...................................................-0.3V to +2.1V
OVCC to OGND .................................................-0.3V to +2.1V
AGND to OGND .................................................-0.3V to +0.3V
Analog Inputs to AGND .......................-0.3V to (AVCC + 0.3V)
Digital Inputs to AGND.........................-0.3V to (AVCC + 0.3V)
REF, REFADJ to AGND...........................-0.3V to (AVCC + 0.3V)
Digital Outputs to OGND.....................-0.3V to (OVCC + 0.3V)
ESD on All Pins (Human Body Model).........................±2000V
Continuous Power Dissipation (TA = +70)
68-Pin QFN (derate 41.7mW/ above +70) .........3333mW
Operating Temperature Range ........................-40to +85
Junction Temperature.................................................+150
Storage Temperature Range ........................-60 to +150
Lead Temperature (soldering, 10s) ............................+300
Maximum Current into Any Pin.......................................50mA

The MAX1123 is a monolithic 10-bit, 210Msps analogto- digital converter (ADC) optimized for outstanding dynamic performance at high IF frequencies up to
500MHz. The product operates with conversion rates of up to 210Msps while consuming only 460mW.

At 210Msps and an input frequency of 100MHz, the MAX1123 achieves a spurious-free dynamic range (SFDR) of 74.5dBc. Its excellent signal-to-noise rat (SNR) of 57.4dB at 10MHz remains flat (within 1.5dB) for input tones up to 500MHz. This makes the MAX1123 ideal for wideband applications such as digital predistortion in cellular base-station transceiver systems.

The MAX1123 requires a single 1.8V supply. The analog input is designed for either differential or singleended operation and can be AC- or DC-coupled. The
ADC also features a selectable on-chip divide-by-2 clock circuit, which allows the user to apply clock frequencies as high as 420MHz. This helps to reduce the
phase noise of the input clock source. A differential LVDS sampling clock is recommended for best performance. The converter's digital outputs are LVDS compatible, and the data format can be selected to be either two's complement or offset binary.

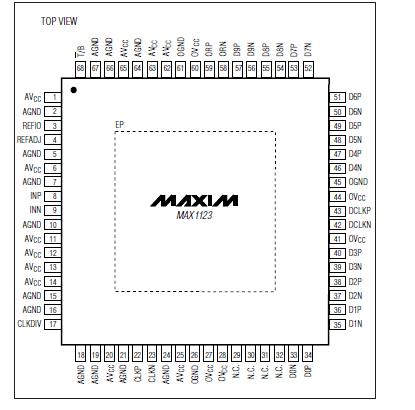

The MAX1123 is available in a 68-pin QFN with exposed paddle (EP) and is specified over the industrial (-40 to +85) temperature range.

For pin-compatible, lower and higher speed versions of the device, refer to the MAX1122 (170Msps) and the MAX1124 (250Msps) data sheets. For a higher speed, pin-compatible 8-bit version of the MAX1123, refer to the MAX1121 data sheet.
