MAX1107

Features: ` Single Supply: +2.7V to +3.6V (MAX1106) +4.5V to +5.5V (MAX1107)` Low Power: 96A at +3V and 25ksps 0.5A in Power-Down Mode` Pin-Programmable Configuration` 0 to VDD Input Voltage Range` Internal Track/Hold` Internal Reference: +2.048V (MAX1106)+4.096V (MAX1107)` 1V to VDD Reference Inp...

product image

MAX1107 Picture
See larger image
SeekIC No. : 004408480 Detail

MAX1107: Features: ` Single Supply: +2.7V to +3.6V (MAX1106) +4.5V to +5.5V (MAX1107)` Low Power: 96A at +3V and 25ksps 0.5A in Power-Down Mode` Pin-Programmable Configuration` 0 to VDD Input Voltage Range` ...

MAX1107 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1107
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Single Supply: +2.7V to +3.6V (MAX1106)
                           +4.5V to +5.5V (MAX1107)
` Low Power: 96A at +3V and 25ksps
    0.5A in Power-Down Mode
` Pin-Programmable Configuration
` 0 to VDD Input Voltage Range
` Internal Track/Hold
` Internal Reference: +2.048V (MAX1106)
                                   +4.096V (MAX1107)
` 1V to VDD Reference Input Range
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` Small 10-Pin MAX Package


Application

Portable Data Logging
Hand-Held Measurement Devices
Medical Instruments
System Diagnostics
Solar-Powered Remote Systems
420mA-Powered Remote Systems
Receive-Signal-Strength Indicators


Pinout

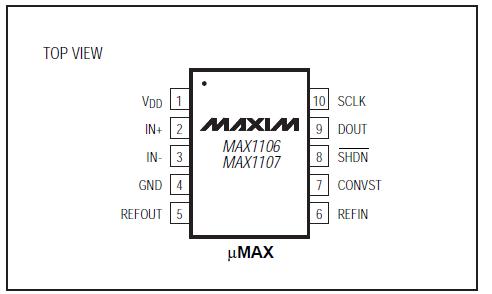

Connection Diagram


Specifications

VDD to GND..............................................................-0.3V to +6V
IN+, IN-, REFIN, REFOUT,
DOUT to GND..............................................-0.3V to (VDD + 0.3V)
SHDN, SCLK, CONVST to GND...................................-0.3V to +6V
Continuous Power Dissipation (TA = +70)
10-pin MAX (derate 5.6mW/above +70) .................444mW
Operating Temperature Ranges
MAX110_CUB ..........................................................0 to +70
MAX110_EUB .......................................................-40 to +85
Storage Temperature Range .............................-65 to +150
Lead Temperature (soldering, 10sec) .............................+300


Description

The MAX1106/MAX1107 low-power, 8-bit, single-channel, analog-to-digital converters (ADCs) feature an internal track/hold (T/H), voltage reference, clock, and serial interface.

The MAX1106 is specified from +2.7V to +3.6V and consumes only 96A. The MAX1107 is specified from +4.5V to +5.5V and consumes only 107A. The analog
inputs are pin-configurable, allowing unipolar and singleended or differential operation.

The full-scale analog input range is determined by the internal reference of +2.048V (MAX1106) or +4.096V (MAX1107), or by an externally applied reference ranging from 1V to VDD. The MAX1106/MAX1107 also feature a pin-selectable power-down mode that reduces power consumption to 0.5A when the device is not in use. The 3-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 25ksps are performed using the internal clock.

The MAX1106/MAX1107 are available in a 10-pin MAX package with a footprint that is just 20% of an 8-pin plastic DIP.
