MAX1091

Features: 10-Bit Resolution, ±0.5 LSB Linearity+3V Single-Supply OperationUser-Adjustable Logic Level (+1.8V to +3.6V)Internal +2.5V ReferenceSoftware-Configurable, Analog Input Multiplexer 8-Channel Single-Ended/ 4-Channel Pseudo-Differential (MAX1091) 4-Channel Single-Ended/ 2-Channel Pseudo-Dif...

product image

MAX1091 Picture
See larger image
SeekIC No. : 004408457 Detail

MAX1091: Features: 10-Bit Resolution, ±0.5 LSB Linearity+3V Single-Supply OperationUser-Adjustable Logic Level (+1.8V to +3.6V)Internal +2.5V ReferenceSoftware-Configurable, Analog Input Multiplexer 8-Channe...

MAX1091 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1091
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

10-Bit Resolution, ±0.5 LSB Linearity
+3V Single-Supply Operation
User-Adjustable Logic Level (+1.8V to +3.6V)
Internal +2.5V Reference
Software-Configurable, Analog Input Multiplexer
                            8-Channel Single-Ended/
                            4-Channel Pseudo-Differential (MAX1091)
                            4-Channel Single-Ended/
                            2-Channel Pseudo-Differential (MAX1093)
Software-Configurable, Unipolar/Bipolar Inputs


Application

ndustrial Control Systems
Data Logging
Energy Management
Patient Monitoring
Data-Acquisition Systems
Touch Screens


Pinout

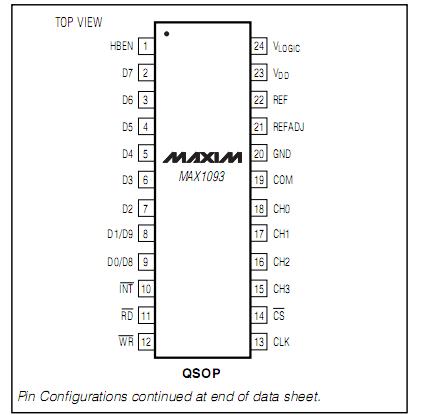

Connection Diagram


Specifications

VDD to GND..............................................................-0.3V to +6V
VLOGIC to GND.........................................................-0.3V to +6V
CH0CH7, COM to GND............................   -0.3V to (VDD + 0.3V)
REF, REFADJ to GND ................................   -0.3V to (VDD + 0.3V)
Digital Inputs to GND ...............................................-0.3V to +6V
Digital Outputs (D0D9, INT) to GND.....-0.3V to (VLOGIC + 0.3V)
Continuous Power Dissipation                                 (TA = +70°C)
24-Pin QSOP (derate 9.5mW/°C above +70°C) ...........   762mW
28-Pin QSOP (derate 8.00mW/°C above +70°C) .........   667mW
Operating Temperature Ranges
MAX1091_C_ _/MAX1093_C_ _...........................    0°C to +70°C
MAX1091_E_ _/MAX1093_E_ _ ........................    -40°C to +85°C
Storage Temperature Range ............................. -65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C


Description

The MAX1091/MAX1093 low-power, 10-bit analog-to-digital converters (ADCs) feature a successive-approximation ADC, automatic power-down, fast wake-up (2µs), an on-chip clock, +2.5V internal reference, and a high-speed, byte-wide parallel interface. They operate with a single +3V analog supply and feature a VLOGIC pin that allows them to interface directly with a +1.8V to +3.6V digital supply.

Power consumption is only 5.7mW (VDD = VLOGIC) at the maximum sampling rate of 250ksps. Two software-selectable power-down modes enable the MAX1091/ MAX1093 to be shut down between conversions; accessing the parallel interface returns them to normal operation. Powering down between conversions can cut supply current to under 10µA at reduced sampling rates.
