MAX1085

Features: · Single-Supply Operation +4.5V to +5.5V (MAX1084) +2.7V to +3.6V (MAX1085)· 10-Bit Resolution· 400ksps Sampling Rate (MAX1084)· Internal Track/Hold· Internal +2.5V Reference· Low Power: 2.5mA (400ksps)· SPI/QSPI/MICROWIRE 3-Wire Serial Interface· Pin-Compatible, High-Speed Upgrade to MA...

product image

MAX1085 Picture
See larger image
SeekIC No. : 004408451 Detail

MAX1085: Features: · Single-Supply Operation +4.5V to +5.5V (MAX1084) +2.7V to +3.6V (MAX1085)· 10-Bit Resolution· 400ksps Sampling Rate (MAX1084)· Internal Track/Hold· Internal +2.5V Reference· Low Power: 2...

MAX1085 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1085
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single-Supply Operation
    +4.5V to +5.5V (MAX1084)
    +2.7V to +3.6V (MAX1085)
· 10-Bit Resolution
· 400ksps Sampling Rate (MAX1084)
· Internal Track/Hold
· Internal +2.5V Reference
· Low Power: 2.5mA (400ksps)
· SPI/QSPI/MICROWIRE 3-Wire Serial Interface
· Pin-Compatible, High-Speed Upgrade to
    MAX1242/MAX1243
· 8-Pin SO Package


Application

Portable Data Logging
Data Acquisition
Medical Instruments
Battery-Powered Instruments
Pen Digitizers
Process Control


Pinout

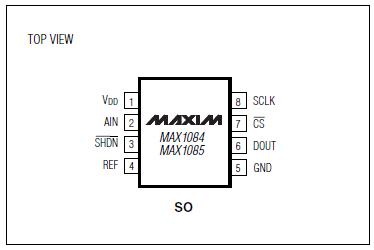

Connection Diagram


Specifications

VDD to GND ....................................................-0.3V to +6V
AIN to GND........................................-0.3V to (VDD + 0.3V)
REF to GND .......................................-0.3V to (VDD + 0.3V)
Digital Inputs to GND......................................-0.3V to +6V
DOUT to GND....................................-0.3V to (VDD + 0.3V)
DOUT Current.........................................................±25mA
Continuous Power Dissipation (TA = +70)
8-Pin SO (derate 5.88mW/ above +70) ...........471mW
Operating Temperature Ranges
MAX1084_CSA/MAX1085_CSA.........................0 to +70
MAX1084_ESA/MAX1085_ESA .....................-40 to +85
Storage Temperature Range......................-60 to +150
Lead Temperature (soldering, 10s)..........................+300


Description

The MAX1084/MAX1085 10-bit analog-to-digital converters (ADCs) combine a high-bandwidth track/hold, a serial interface with high conversion speed, an internal +2.5V reference, and low power consumption. The MAX1084 operates from a single +4.5V to +5.5V supply; the MAX1085 operates from a single +2.7V to +3.6V supply.

The 3-wire serial interface connects directly to SPI™/QSPI™/MICROWIRE™ devices without external logic. The devices use an external serial-interface clock to
perform successive-approximation analog-to-digital conversions.

Low power combined with ease of use and small package size make these converters ideal for remote-sensor and data-acquisition applications, or for other circuits with demanding power consumption and space requirements. The MAX1084/MAX1085 are available in 8-pin SO packages.

The MAX1084/MAX1085 are pin-compatible, higher-speed versions of the MAX1242/MAX1243; for more information, refer to the respective data sheets.
