Features:

` 14-Bit Resolution, ±0.5 LSB INL and ±1 LSB DNL (max)
` +5V Single-Supply Operation
` Adjustable Logic Level (+2.7V to +5.25V)
` Input Voltage Range: 0 to VREF
` Internal (+4.096V) or External (+3.8V to AVDD) Reference
` Internal Track/Hold, 4MHz Input Bandwidth
` Internal or External Clock
` SPI/QSPI/MICROWIRE-Compatible Serial Interface, MAX1068 Performs DSP-Initiated Conversions
` 8-Bit-Wide or 16-Bit-Wide Data-Transfer Mode (MAX1068 Only)
` 4-Channel (MAX1067) or 8-Channel (MAX1068) Input Mux Scan Mode Sequentially Converts Multiple Channels or One Channel Continuously
` Low Power 2.9mA at 200ksps 1.45mA at 100ksps 145A at 10ksps 0.6A in Full Power-Down Mode
` Small Package Size 16-Pin QSOP (MAX1067) 24-Pin QSOP (MAX1068)

Application

·Motor Control
·Industrial Process Control
·Industrial I/O Modules
·Data-Acquisition Systems
·Thermocouple Measurements
·Accelerometer Measurements

Pinout

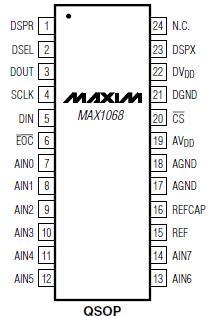

Connection Diagram

Specifications

AVDD to AGND ..................................................-0.3V to +6V
DVDD to DGND...................................................-0.3V to +6V
DGND to AGND................................................-0.3V to +0.3V
AIN_, REF, REFCAP to AGND...............-0.3V to (AV_DD + 0.3V)
SCLK, CS, DSEL, DSPR, DIN to DGND ................-0.3V to +6V
DOUT, DSPX, EOC to DGND................-0.3V to (DV_DD + 0.3V)
Maximum Current into Any Pin......................................50mA
Continuous Power Dissipation (TA = +70)
16-Pin QSOP (derate 8.3mW/ above +70)...........667mW
24-Pin QSOP (derate 9.5mW/ above +70)...........762mW
Operating Temperature Ranges
MAX106_ _ CE_ ..................................................0 to +70
MAX106_ _ EE_ ...............................................-40 to +85
Maximum Junction Temperature ..................................+150
Storage Temperature Range .........................-65 to +150
Lead Temperature (soldering, 10s) .............................+300
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability

Description

The MAX1067/MAX1068 low-power, multichannel, 14-bit analog-to-digital converters (ADCs) feature a successive-approximation ADC, integrated +4.096V reference, a reference buffer, an internal oscillator,automatic power-down, and a high-speed SPI./QSPI./MICROWIRE.-compatible interface. The MAX1067/MAX1068 operate with a single +5V analog supply and feature a separate digital supply, allowing direct interfacing with +2.7V to +5.5V digital logic.

The MAX1067/MAX1068 consume only 2.9mA (AV_DD =DV_DD = +5V) at 200ksps when using an external reference.AutoShutdown. reduces the supply current to 145A at 10ksps and to less than 10A at reduced sampling
rates.

The MAX1067 includes a 4-channel input multiplexer, and the device accepts up to eight analog inputs. In addition, digital signal processor (DSP)-initiated conversions are simplified with the DSP frame-sync input and output featured in the device. The MAX1068 includes a data-bit transfer input to select between 8-bit-wide or 16-bit-wide data-transfer modes. Both devices feature a scan mode that converts each channel sequentially or one channel continuously.

Excellent dynamic performance and low power, combined with ease of use and an integrated reference,make the MAX1067/MAX1068 ideal for control and dataacquisition operations or for other applications with demanding power consumption and space requirements. The MAX1067 is available in a 16-pin QSOP package, and the MAX1068 is available in a 24-pin QSOP package. Both devices are guaranteed over the commercial (0 to +70) and extended (-40 to +85;) temperature ranges. Use the MAX1168 evaluation kit to evaluate the device.
