MAX1062

Features: ` 14-Bit Resolution, 1LSB DNL` +5V Single-Supply Operation` Adjustable Logic Level (2.7V to 5.25V)` Input Voltage Range: 0 to VREF` Internal Track/Hold, 4MHz Input Bandwidth` SPI/QSPI/MICROWIRE-Compatible Serial Interface` Small 10-Pin MAX Package` Low Power 2.5mA at 200ksps 130A at 10ks...

product image

MAX1062 Picture
See larger image
SeekIC No. : 004408426 Detail

MAX1062: Features: ` 14-Bit Resolution, 1LSB DNL` +5V Single-Supply Operation` Adjustable Logic Level (2.7V to 5.25V)` Input Voltage Range: 0 to VREF` Internal Track/Hold, 4MHz Input Bandwidth` SPI/QSPI/MICR...

MAX1062 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MAX1062
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 14-Bit Resolution, 1LSB DNL
` +5V Single-Supply Operation
` Adjustable Logic Level (2.7V to 5.25V)
` Input Voltage Range: 0 to VREF
` Internal Track/Hold, 4MHz Input Bandwidth
` SPI/QSPI/MICROWIRE-Compatible Serial Interface
` Small 10-Pin MAX Package
` Low Power
    2.5mA at 200ksps
    130A at 10ksps
    0.1A in Power-Down Mode


Application

Motor Control
Industrial Process Control
Industrial I/O Modules
Data-Acquisition Systems
Thermocouple Measurements
Accelerometer Measurements
Portable- and Battery-Powered Equipment


Pinout

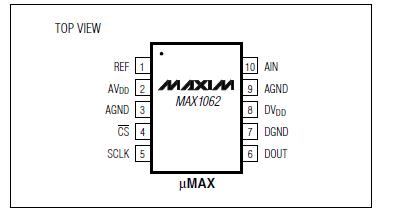

Connection Diagram


Specifications

AVDD to AGND ..................................................-0.3V to +6V
DVDD to DGND..................................................-0.3V to +6V
DGND to AGND...............................................-0.3V to +0.3V
AIN, REF to AGND .............................-0.3V to (AVDD + 0.3V)
SCLK, CS to DGND............................................-0.3V to +6V
DOUT to DGND .................................-0.3V to (DVDD + 0.3V)
Maximum Current Into Any Pin ....................................50mA
Continuous Power Dissipation (TA = +70)
10-Pin MAX (derate 5.6mW/ above +70) .........444mW
Operating Temperature Ranges
MAX1062_CUB .................................................0 to +70
MAX1062_EUB ..............................................-40 to +85
Maximum Junction Temperature ...............................+150
Storage Temperature Range ......................-65 to +150
Lead Temperature (soldering, 10s) .........................+300


Description

The MAX1062 low-power, 14-bit analog-to-digital converter (ADC) features a successive approximation ADC, automatic power-down, fast 1.1s wake-up, and a highspeed SPI™/QSPI™/MICROWIRE™-compatible interface. The MAX1062 operates with a single +5V analog supply and features a separate digital supply, allowing direct interfacing with 2.7V to 5.25V digital logic.

At the maximum sampling rate of 200ksps, the MAX1062 consumes only 2.5mA. Power consumption is only 12.5mW (AVDD = DVDD = 5V) at a 200ksps (max) sampling rate. AutoShutdown™ reduces supply current to 130A at 10ksps and to less than 10A at reduced sampling rates.

Excellent dynamic performance and low power, combined with ease of use and small package size (10-pin MAX) make the MAX1062 ideal for battery-powered and data-acquisition applications or for other circuits with demanding power consumption and space requirements.
