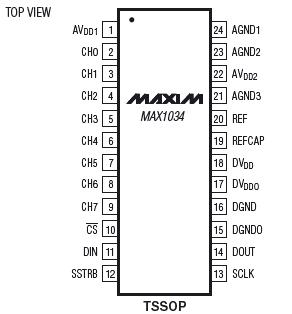

Connection Diagram

Specifications

AV_DD1 to AGND1 .................................................-0.3V to +6V
AV_DD2 to AGND2 .................................................-0.3V to +6V
DV_DD to DGND.....................................................-0.3V to +6V
DV_DDO to DGNDO ...............................................-0.3V to +6V
DV_DD to DV_DDO...................................................-0.3V to +6V
DV_DD, DV_DDO to AV_DD1........................................-0.3V to +6V
AV_DD1, DV_DD, DV_DDO to AV_DD2 ...........................-0.3V to +6V
DGND, DGNDO, AGND3, AGND2 to AGND1 ........-0.3V to +0.3V
CS, SCLK, DIN, DOUT, SSTRB to
DGNDO................................................-0.3V to (DV_DDO + 0.3V)
CH0CH7 to AGND1.................................................-6V to +6V
REF, REFCAP to AGND1.........................-0.3V to (AV_DD1 + 0.3V)
Continuous Current (any pin) ........................................±50mA
Continuous Power Dissipation (T_A = +70°C)
20-Pin TSSOP (derate 11mW/°C above +70°C) ..........879mW
24-Pin TSSOP (derate 12.2mW/°C above +70°C) .......976mW
Operating Temperature Range ........................-40°C to +85°C
Junction Temperature ....................................................+150°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Description

The MAX1034/MAX1035 multirange, low-power, 14-bit, successive-approximation, analog-to-digital converters (ADCs) operate from a single +5V supply and achieve throughput rates up to 115ksps. A separate digital supply allows digital interfacing with 2.7V to 5.25V systems using the SPI™-/QSPI™-/MICROWIRE™-compatible serial interface. Partial power-down mode reduces the supply current to 1.3mA (typ). Full power-down mode reduces the power-supply current to 1µA (typ).

The MAX1034 provides eight (single-ended) or four (true differential) analog input channels. The MAX1035 provides four (single-ended) or two (true differential) analog input channels. Each analog input channel is independently software programmable for seven single-ended input ranges (0 to +V_REF/2, -V_REF/2 to 0, 0 to +V_REF, -V_REF to 0, ±V_REF/4, ±V_REF/2, and ±V_REF), and three differential input ranges (±V_REF/2, ±V_REF, ±2 x V_REF).

An on-chip +4.096V reference offers a small convenient ADC solution. The MAX1034/MAX1035 also accept an external reference voltage between 3.800V and 4.136V.

The MAX1034 is available in a 24-pin TSSOP package and the MAX1035 is available in a 20-pin TSSOP package. Each device is specified for operation from -40°C to +85°C.
