Features:

· Internal Temperature Sensor (±1°C Accuracy)
· 16-Entry First-In/First-Out (FIFO)
· Analog Multiplexer with True Differential Track/Hold 16-, 12-, 8-Channel Single Ended 8-, 6-, 4-Channel True Differential (Unipolar or Bipolar)
· Accuracy: ±1 LSB INL, ±1 LSB DNL, No Missing Codes Over Temperature
· Scan Mode, Internal Averaging, and Internal Clock
· Low-Power Single +5V Operation 1.9mA at 300ksps
· Internal 4.096V Reference or External Differential Reference
· 10MHz 3-Wire SPI/QSPI/MICROWIRE-Compatible Interface
· Space-Saving 28-Pin 5mm x 5mm QFN Package


Application

System Supervision
Data-Acquisition Systems
Industrial Control Systems
Patient Monitoring
Data Logging
Instrumentation


Pinout

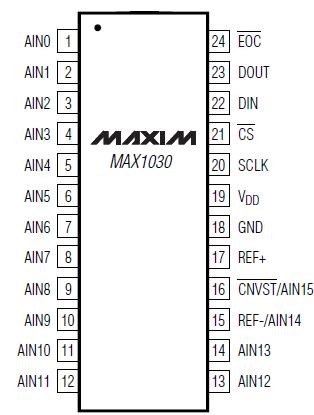

Connection Diagram




Specifications

VDD to GND...........................................................-0.3V to +6V
CS, SCLK, DIN, EOC, DOUT to GND..........-0.3V to (VDD + 0.3V)
AIN0AIN13, REF-/AIN_, CNVST/AIN_,
REF+ to GND............................................-0.3V to (VDD + 0.3V)
Maximum Current into Any Pin..........................................50mA
Continuous Power Dissipation (TA = +70°C)
16-Pin QSOP (derate 8.3mW/°C above +70°C)...........667mW
20-Pin QSOP (derate 9.1mW/°C above +70°C)...........727mW
24-Pin QSOP (derate 9.5mW/°C above +70°C)...........762mW
28-Pin QFN 5mm x 5mm
(derate 20.8mW/°C above +70°C)............................1667mW
Operating Temperature Ranges
MAX10__C__.......................................................0°C to +70°C
MAX10__E__....................................................-40°C to +85°C
Storage Temperature Range .........................-60°C to +150°C
Junction Temperature ....................................................+150°C
Lead Temperature (soldering, 10s) ...............................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings"
may cause permanent damage to the device. These are stress
ratings only, and functional operation of the device at these or
any other conditions beyond those indicated in the operational
sections of the specifications is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect device
reliability.


Description

The MAX1026/MAX1028/MAX1030 are serial 10-bit analog- to-digital converters (ADCs) with an internal reference and an internal temperature sensor. These devices feature on-chip FIFO, scan mode, internal clock mode, internal averaging, and AutoShutdown™. The maximum sampling rate is 300ksps using an external clock. The MAX1030 has 16 input channels, the MAX1028 has 12 input channels, and the MAX1026 has 8 input channels. All input channels are configurable for single-ended or differential inputs in unipolar or bipolar mode. All three devices operate from a +5V supply and contain a 10MHz SPI™/QSPI™/MICROWIRE™-compatible serial port. The MAX1030 is available in 28-pin 5mm x 5mm QFN with exposed pad and 24-pin QSOP packages. The MAX1026/MAX1028 are only available in QSOP packages. All three devices are specified over the extended -40°C to +85°C temperature range.
