MAX038

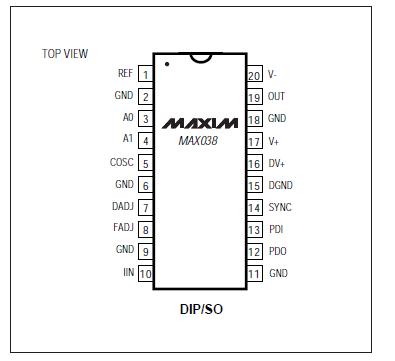

The MAX038 is a high-frequency, precision function generator producing accurate, high-frequency triangle, sawtooth, sine, square, and pulse waveforms with a minimum of external components. The output frequency of MAX038 can be controlled over a frequency range of 0.1Hz to 20MHz by an internal 2.5V bandgap voltage
reference and an external resistor and capacitor. The duty cycle can be varied over a wide range by applying a ±2.3V control signal, facilitating pulse-width modulation and the generation of sawtooth waveforms. Frequency modulation and frequency sweeping are achieved in the same way. The duty cycle and
frequency controls are independent.

Sine, square, or triangle waveforms of MAX038 can be selected at the output by setting the appropriate code at two TTL-compatible select pins. The output signal for all
waveforms is a 2VP-P signal that is symmetrical around ground. The low-impedance output can drive up to ±20mA.

The TTL-compatible SYNC output from the internal oscillator maintains a 50% duty cycle-regardless of the duty cycle of the other waveforms-to synchronize
other devices in the system. The internal oscillator can be synchronized to an external TTL clock connected to PDI.
