Product Details

Description



Features:

·  2.3 to 4.1 GHz Operation
·  6 Bit Phase Shifter
·  360º Coverage, LSB = 5.6º
·  TTL Control Inputs
·  Self-Aligned MSAG® MESFET Process
·  6mm, 28 Lead, FQFP-N Package


Application

·  Satellite Communication
·  Phased Array Radar

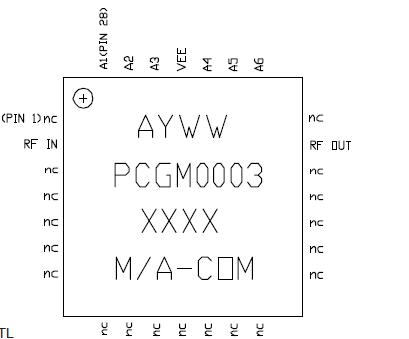

Pinout

Connection Diagram


Description

The MAPCGM0003 is a 6 -bit Phase Shifter with Parallel TTL Input Control and is packaged in a micro lead package (MLP). This product is fully matched to 50 ohms on both the input and output. This part has 360º of phase coverage in 5.6º increments.

The MAPCGM0003 is 100% RF tested on wafer to ensure performance compliance. The part is fabricated using M/A-COM's repeatable, high performance and highly reliable GaAs Multifunction Self-Aligned Gate (MSAG®) MESFET Process
