Product Details

Description



Features:

• 75 Input / Output Match
• CTB: -75 dBc
• Noise Figure: 1.8 dB
• Gain: 17 dB, 20 dB
• Lead Free SOT-89 Package
• 100% Matte Tin Plating over Copper
• Halogen-Free "Green" Mold Compound
• RoHS* Compliant and 260°C Reflow Compatible


Pinout

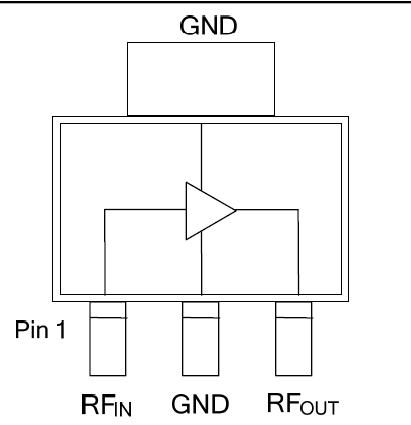

Connection Diagram


Specifications

Parameter Absolute Maximum
RF Input Power 6 dBm
Voltage 10.0 volts
Operating Temperature -40°C to +85°C
Storage Temperature -65°C to +150°C



Description

M/A-COM's MAAMSS0060 CATV amplifier is a GaAs MMIC which exhibits low distortion in a lead free miniature surface mount plastic package. The MAAMSS0060 employs a monolithic single stage design featuring a convenient 75 input/output impedance that minimizes the number of external components required.

The MAAMSS0060 provides low noise and high linearity. It is ideally suited for set top boxes, home gateways, FTTX, Drop Amplifiers, and other broadband internet based appliances.

The MAAMSS0060 is fabricated using M/A-COM's PHEMT process to realize low noise and low distortion. The process features full passivation for robust performance and reliability.
