Product Details

Description

Features:

• Broadband Operation
• Output Intercept Point Greater than +40 dBm
• Excellent ACPR performance
• High Efficiency
• Lead-Free SOIC-8EP Package
• 100% Matte Tin Plating over Copper
• Halogen-Free "Green" Mold Compound
• RoHS* Compliant and 260°C Reflow Compatible

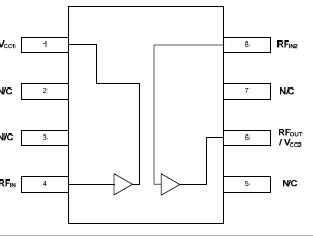

Pinout

Connection Diagram

Specifications

Parameter	Absolute Maximum
RF Output Power	29 dBm
Voltage	6 volts
Storage Temperature	-65°C to +150°C
Junction Temperature	200°C

Description

M/A-COM's MAAMSS0056 RF driver amplifier is a two stage GaAs MMIC which exhibits exceptional linearity performance as well as featuring high gain in a lead-free SOIC-8EP surface mount plastic package. The device runs off a single +5 volt supply and draws 190 mA typically.

The MAAMSS0056 is fabricated using a high reliability GaAs HBT process to realize low current and high power functionality. The process features full passivation for increased performance and reliability.

The MAAMSS0056 has been designed to be a functional driver amplifier from 250 to 4000 MHz.
