Features:

• Low Noise Figure: 1.2 dB
• High Input IP3: +18 dBm at 8 V, 60 mA bias +6.5 dBm at 3 V, 20 mA bias
• High Gain: 15 dB
• Single Supply: +3 to +8 VDC
• Adjustable current: 20 to 80 mA with external resistor
• Lead-Free SOIC-8 Package
• 100% Matte Tin Plating over Copper
• Halogen-Free "Green" Mold Compound
• 260°C Reflow Compatible
• RoHS* Compliant Version of AM50-0003


Pinout

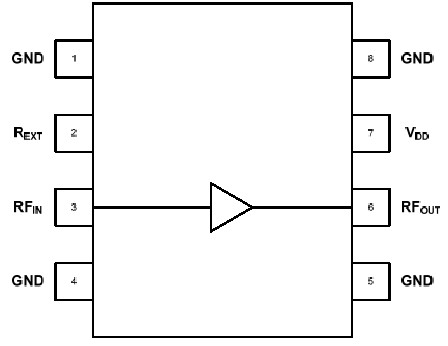

Connection Diagram


Specifications

Parameter Absolute Maximum
VDD +10 VDC
Input Power +10 dBm
Current5 120 mA
Channel Temperature6 +150°C
Operating Temperature -40°C to +85°C
Storage Temperature -65°C to +150°C
3. Exceeding any one or combination of these limits may cause permanent damage to this device.
4. M/A-COM does not recommend sustained operation near these survivability limits.
5. When pin #2 is used to increase current (see note 8).
6. Thermal resistance (jc) = +88°C/W.


Description

M/A-COM's MAAL-008091 is a high dynamic range, GaAs MMIC, low noise amplifier in a lead-free SOIC-8, surface mount plastic package. It employs external input matching to obtain optimum noise figure performance and operating frequency flexibility.

The MAAL-008091 also features flexible biasing to control the current consumption vs. dynamic range trade-off. The MAAL-008091 can operate from any supply voltage in the 3 V to 8 V range. Its current can be controlled over a range of 20 mA to 80 mA with an external resistor. The MAAL-008091 is ideally suited for use where low noise figure, high gain, high dynamic range, and low power consumption are required. Typical applications include receiver front ends in AMPS, GSM, and ETACS base stations. It is also useful as a gain block, buffer, driver, and IF amplifier in both fixed and portable cellular and 900 MHz ISM systems.

The MAAL-008091 is fabricated using a low-cost 0.5-micron gate length GaAs process. The process features full passivation for increased performance reliability.
