Product Details

Description



Features:

· Low Cost SOT-25 Miniature Plastic Package
· 6.5 dB Typical Conversion Loss at 5000 MHz
· +7 to +13 dBm LO Drive
· Silicon Medium Barrier Schottky Diodes
· Double Balanced Passive Mixer
· NO External Matching Required

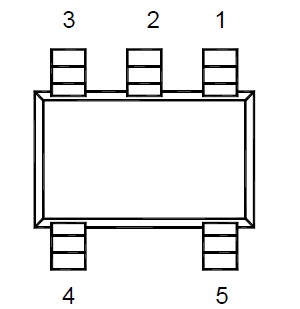

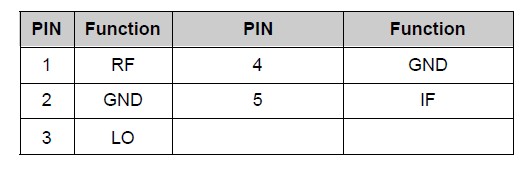

Pinout

Connection Diagram Connection Diagram


Specifications

Operating Temperature        -40 °C to +85 °C
Storage Temperature        -65 °C to +150 °C
Incident LO Power                       +20 dBm C.W.
Incident RF Power                       +20 dBm C.W.


Description

M/A-COM's MA4EX600M-1225T is a silicon monolithic 4.2 6.0 GHz double balanced mixer in a low cost miniature surface mount SOT-25 package. The die uses M/A-COM's unique HMIC silicon/glass process to realize low loss passive elements while retaining the advantages of medium barrier silicon Schottky diodes.

These mixers MA4EX600M-1225T are well suited for high volume WLL and WLAN applications where small size and repeatability are required. Typical applications include frequency conversion, modulation, and demodulation in wireless receivers and transmitters.
