MA17501

Features: ` MIL-STD-1750A Instruction Set Architecture` Full Performance over Military Temperature Range (-55 to +125 )` Radiation Hard CMOS/SOS Technology` 16-Bit Bidirectional Address/Data Bus` 16-Bit Full Function Registered ALU` 32-Bit Barrel Shifter` 24 x 16-Bit Dual-Port RAM File` 16 User Ac...

product image

MA17501 Picture
SeekIC No. : 004407443 Detail

MA17501: Features: ` MIL-STD-1750A Instruction Set Architecture` Full Performance over Military Temperature Range (-55 to +125 )` Radiation Hard CMOS/SOS Technology` 16-Bit Bidirectional Address/Data Bus` 16...

floor Price/Ceiling Price

Part Number:
MA17501
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` MIL-STD-1750A Instruction Set Architecture
` Full Performance over Military Temperature Range (-55 to +125 )
` Radiation Hard CMOS/SOS Technology
` 16-Bit Bidirectional Address/Data Bus
` 16-Bit Full Function Registered ALU
` 32-Bit Barrel Shifter
` 24 x 16-Bit Dual-Port RAM File
` 16 User Accessible General Purpose Registers
` 8 Microcode Accessible Registers
` 4 x 24-Bit Parallel Multiplier
` 48-Bit Accumulator
` 16-Bit x 16-Bit Multiply in 4 Machine Cycles
` Instruction Pre-Fetch
` MAS281 Integrated Built-in Self Test
` TTL Compatible System Interface

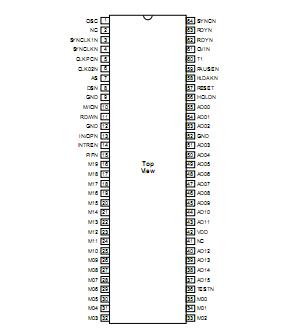

Pinout






Specifications

Parameter Min Max Units
Supply Voltage -0.5 7 V
Input Voltage -0.3 VDD+0.3 V
Current Through Any Pin -20 +20 mA
Operating Temperature -55 125
Storage Temperature -65 150

Note: Stresses above those listed may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these conditions, or at any other condition above those indicated in the perations section of this specification, is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
