M87C51FB

Features: High Performance CHMOS EPROMThree 16-Bit Timer/Counters Programmable Counter Array with:High Speed Output,Compare/Capture,Pulse Width Modulator,Watchdog Timer capabilities Up/Down Timer/CounterThree Level Program Lock System 16K On-Chip EPROM256 Bytes of On-Chip Data RAMQuick Pulse Progr...

product image

M87C51FB Picture
See larger image
SeekIC No. : 004407332 Detail

M87C51FB: Features: High Performance CHMOS EPROMThree 16-Bit Timer/Counters Programmable Counter Array with:High Speed Output,Compare/Capture,Pulse Width Modulator,Watchdog Timer capabilities Up/Down Timer/Co...

M87C51FB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M87C51FB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High Performance CHMOS EPROM
 Three 16-Bit Timer/Counters
  Programmable Counter Array with:
High Speed Output,
Compare/Capture,
Pulse Width Modulator,
Watchdog Timer capabilities
  Up/Down Timer/Counter
 Three Level Program Lock System
  16K On-Chip EPROM
 256 Bytes of On-Chip Data RAM
 Quick Pulse Programming Algorithm
 Boolean Processor
 ONCE (On-Circuit Emulation) Mode
 Available in 40-pin CERDIP and 44-pin Leadless Chip Carrier Packages
  Gullwing and J-lead Packages Also Available
 32 Programmable I/O Lines
 7 Interrupt Sources
 Programmable Serial Channel with:
Framing Error Detection
Automatic Address Recognition
  TTL and CMOS Compatible Logic Levels
 64K External Program Memory Space
 64K External Data Memory Space
 MCS. 51 Microcontroller Fully Compatible Instruction Set
  Power Saving Idle and Power Down Modes
  Military Temperature Range:b55ßC to a125ßC (TC)


Pinout

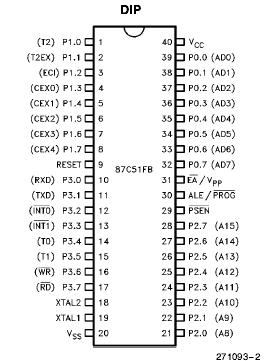

Connection Diagram


Specifications

Case Temperature Under Bias
....................................................b55ßC to a125ßC
Storage Temperature .................b65ßC to a150ßC
Voltage on EA/VPP Pin to VSS............0V to a13.0V
Voltage on Any Other Pin to VSS ..b0.5V to a6.5V
Maximum IOL Per I/O Pin ............................15 mA
Power Dissipation..........................................1.5W
(based on PACKAGE heat transfer limitations, not
device power consumption)
