Features:

`Asynchronous Operation
5- to 9-Bit Character Format
Baud Rate DC to 288k
Complete Error Detection
`Multiple Sampling Windows
`Two, Independent, Four-Byte Transmit and Receive FIFOs
Programmable Threshold
`Two, 16-bit Baud Rate Generators/ Timers
`System Clock Options
On-Chip Crystal Oscillator
External Clocks
`MCS.-51 9-Bit Protocol Support
`Control Character Recognition
`CHMOS III with Power Down Mode
`Interrupts Maskable at Two Levels
`Auto Echo and Loopback Modes
`Seven I/O Pins, Dedicated and General Purpose
`Available in 28-Lead CERDIP and 28-Pad LCC Packages
`Military Temperature Range: -55 to +125 (TC)



Pinout

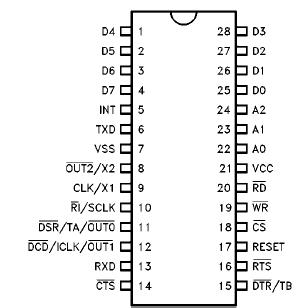

  Connection Diagram


Specifications

Case Temperature under Bias . . . -55 to +125
Storage Temperature . . . . . . . . . .-65 to +150
Voltage on any Pin (w.r.t. VSS) -0.5V to VCC +0.5V
Voltage on VCC Pin (w.r.t. VSS). . . . .  -0.5V to +7V
Power Dissipation. . . . . . . . . . . . . . . . . . .  250 mW



Description

The M82510 can be functionally divided into seven major blocks (See Fig 1): Bus Interface Unit, Timing Unit, Modem Module, Tx FIFO, Rx FIFO, Tx Machine, and Rx Machine. Six of these blocks (all except Bus Interface Unit) can generate block interrupts. Three of these blocks can generate secondlevel interrupts which reflect errors/status within the
block (Receive Machine, Timing Unit, and the Modem Module).

The Bus interface unit allows the M82510 to interface with the rest of the system. It controls access to device registers as well as generation of interrupts to the external world. The FIFOs buffer the CPU from the Serial Machines and reduce the interrupt overhead normally required for serial operations. The threshold (level of occupancy in the FIFO which will generate an interrupt) is programmable for each FIFO. The timing unit controls generation of the system clock through either its on-chip crystal oscillator, or an externally generated clock. It also provides two
Baud Rate Generators/Timers with various options and modes to support serial communication.
