Series: -
Input Type: Non-Inverting
Mounting Type: Surface Mount
Current - Output / Channel: 2A
Number of Outputs: 2
Type: Half Bridge
Operating Temperature: -20°C ~ 75°C
Current - Peak Output: 2.5A
Packaging: Bulk
Manufacturer: Powerex Inc
Voltage - Supply: 10 V ~ 20 V

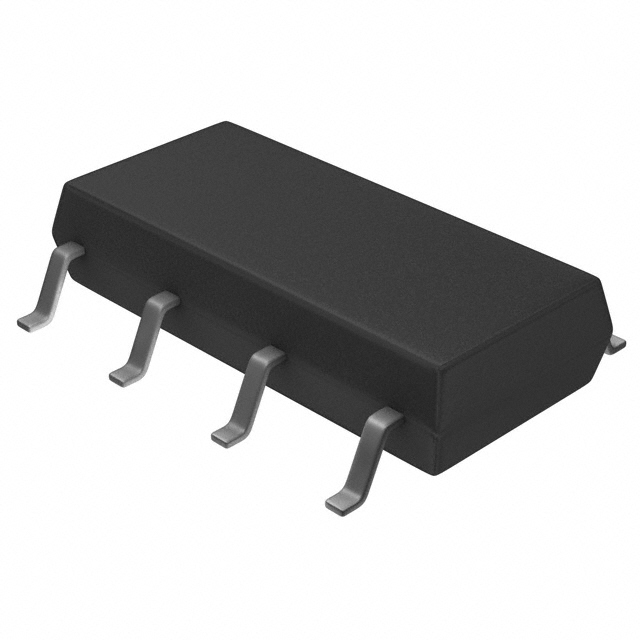

Package / Case: 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package: 16-SOP
On-State Resistance: 10 Ohm
Features: ·FLOATING SUPPLY VOLTAGE .................................600V
·OUTPUT CURRENT ................................................. ±2A
·HALF BRIDGE DRIVER
·SOP-16ApplicationPDP. HID lamp. MOSFET and IGBT module inverter driver for refrigerator, air-conditioner, washing machine, servomotor and general purpose.
Pinout
Specifications
| Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| VB |
High Side Floating Supply Absolute Voltage |
|
0.5 ~ 624 |
V |
| VS |
High Side Floating Supply Offset Voltage |
|
0.5 ~ 600 |
V |
| VBS |
High Side Floating Supply Voltage |
VBS = VB-VS |
0.5 ~ 24 |
V |
| VS |
Allowable Offset Supply Voltage minus serge |
PW < 1µs |
-5 |
V |
| VHO |
High Side Output Voltage |
|
VS0.5 ~ VB+0.5 |
V |
| VCC |
Low Side Fixed Supply Voltage |
|
0.5 ~ 24 |
V |
| VLO |
Low Side Output Voltage |
|
0.5 ~ VCC+0.5 |
V |
| VDD |
Logic Supply Voltage |
|
0.5 ~ 24 |
V |
| VIN |
Logic Input Voltage |
HIN, LIN |
0.5 ~ VDD+0.5 |
V |
| LGND |
Low Side Return Offset Voltage |
VCC-LGND < 24V |
5 ~ VCC+0.5 |
V |
| dVS/dt |
Allowable Offset Supply Voltage Transient |
|
±50 |
V/ns |
| Pd |
Package Power Dissipation |
Ta = 25, On Board |
0.88 |
W |
| K |
Linear Derating Factor |
Ta > 25, On Board |
8.8 |
mW/ |
| Rth(j-c) |
Junction-Case Thermal Resistance |
|
50 |
/W |
| Tj |
Junction Temperature |
|
20 ~ 125 |
|
| Topr |
Operation Temperature |
|
20 ~ 75 |
|
| Tstg |
Storage Temperature |
|
40 ~ 125 |
|
DescriptionM81703FP is high voltage Power MOSFET and IGBT module driver for half bridge applications.
Parameters: | Technical/Catalog Information | M81703FP |
| Vendor | Powerex Inc |
| Category | Integrated Circuits (ICs) |
| Package / Case | 16-SOP |
| Mounting Type | Surface Mount |
| Type | Half Bridge |
| Voltage - Supply | 10 V ~ 20 V |
| On-State Resistance | 10 Ohm |
| Current - Output / Channel | 2A |
| Current - Peak Output | 2.5A |
| Packaging | Bulk |
| Input Type | Non-Inverting |
| Number of Outputs | 2 |
| Operating Temperature | -20°C ~ 75°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | M81703FP
M81703FP
|
M81703FP Data Sheet
