M80C51FB

Features: `Three 16-Bit Timer/Counters`Programmable Clock Out`Programmable Counter Array with:High Speed Output,Compare/Capture,Pulse Width Modulator,Watchdog Timer capabilities`Up/Down Timer/Counter`256 Bytes of On-Chip Data RAM`Boolean Processor`ONCE (On-Circuit Emulation) Mode`Available in 40-p...

product image

M80C51FB Picture
See larger image
SeekIC No. : 004407304 Detail

M80C51FB: Features: `Three 16-Bit Timer/Counters`Programmable Clock Out`Programmable Counter Array with:High Speed Output,Compare/Capture,Pulse Width Modulator,Watchdog Timer capabilities`Up/Down Timer/Counte...

M80C51FB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M80C51FB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 `Three 16-Bit Timer/Counters
 `Programmable Clock Out
 `Programmable Counter Array with:
High Speed Output,
Compare/Capture,
Pulse Width Modulator,
Watchdog Timer capabilities
 `Up/Down Timer/Counter
 `256 Bytes of On-Chip Data RAM
 `Boolean Processor
 `ONCE (On-Circuit Emulation) Mode
 `Available in 40-pin CERDIP and 44-pin Leadless Chip Carrier Packages
 `Gull Wing and J-Lead Packages also Available
 `32 Programmable I/O Lines
 `7 Interrupt Sources
 `Programmable Serial Channel with:
Framing Error Detection
Automatic Address Recognition
 `TTL and CMOS Compatible Logic Levels
 `64K External Program Memory Space
 `64K External Data Memory Space
 `MCS® 51 Microcontroller Fully Compatible Instruction Set
 `Power Saving Idle and Power Down Modes
 `Military Temperature Range: -55 to +125 (TC)

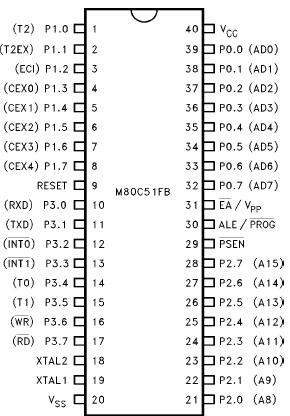

Pinout

Connection Diagram


Specifications

Case Temperature
under Bias(6). . . . . . . . . . . . . . . . . . . .-55 to +125
Storage Temperature. . . . . . . . . . . . . -65 to +150
Voltage on EA/VPP Pin to VSS  . . . . . . . . .0V to a13.0V
Voltage on Any Other Pin to VSS . . . . . .-0.5V to +6.5V
Maximum IOL Per I/O Pin . . . . . . . . . . . . . . . . . . 15 mA
Power Dissipation. . . . . . . . . . . . . . . . . . . . . . . . . 1.5W


Description

The Intel M80C51FB is a single-chip control-oriented microcontroller which is fabricated on Intel's reliable CHMOS III-E technology. Being a member of the family of MCS 51 microcontrollers, the M80C51FB uses the same powerful instruction set, has the same architecture, and is pin for pin compatible with the existing MCS 51 microcontroller family of products. The M80C51FB is an enhanced version of the M80C51. Its added features make it an even more powerful microcontroller for applications that require Pulse Width Modulation, High Speed I/O, and up/down counting capabilities such as motor control or fin actuation. It also has a more versatile serial channel that facilitates multi-processor communications.
