M68AW511A

Features: SUPPLY VOLTAGE: 2.7 to 3.6V512K x 8 bits SRAM with OUTPUT ENABLEEQUAL CYCLE and ACCESS TIMES: 55nsLOW STANDBY CURRENTLOW VCC DATA RETENTION: 1.5VTRI-STATE COMMON I/OLOW ACTIVE and STANDBY POWERPinoutSpecifications Symbol Parameter Value Unit IO(1) Output Current 20 mA TA...

product image

M68AW511A Picture
See larger image
SeekIC No. : 004407010 Detail

M68AW511A: Features: SUPPLY VOLTAGE: 2.7 to 3.6V512K x 8 bits SRAM with OUTPUT ENABLEEQUAL CYCLE and ACCESS TIMES: 55nsLOW STANDBY CURRENTLOW VCC DATA RETENTION: 1.5VTRI-STATE COMMON I/OLOW ACTIVE and STANDBY ...

M68AW511A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M68AW511A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

SUPPLY VOLTAGE: 2.7 to 3.6V
512K x 8 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIMES: 55ns
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 1.5V
TRI-STATE COMMON I/O
LOW ACTIVE and STANDBY POWER


Pinout

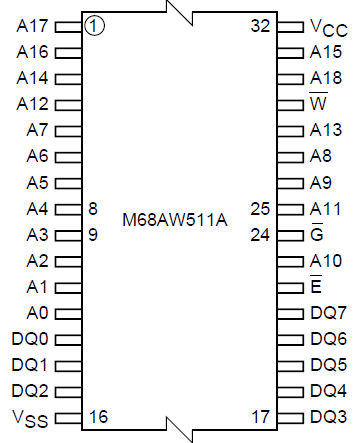

Connection Diagram


Specifications

Symbol Parameter Value Unit
IO(1) Output Current 20 mA
TA Ambient Operating Temperature 55 to 125 °C
TSTG Storage Temperature 65 to 150 °C
VCC Supply Voltage 0.5 to 4.6 V
VIO(1) Input or Output Voltage 0.5 to VCC+0.5 V
PD Power Dissipation 1 W
