Product Details

Description



Features:

SUPPLY VOLTAGE: 2.7 to 3.6V
64K x 16 bits SRAM with OUTPUT ENABLE
EQUAL CYCLE and ACCESS TIME: 55ns and 70ns
LOW STANDBY CURRENT
LOW VCC DATA RETENTION: 2.0V
TRI-STATE COMMON I/O
AUTOMATIC POWER DOWN


Pinout

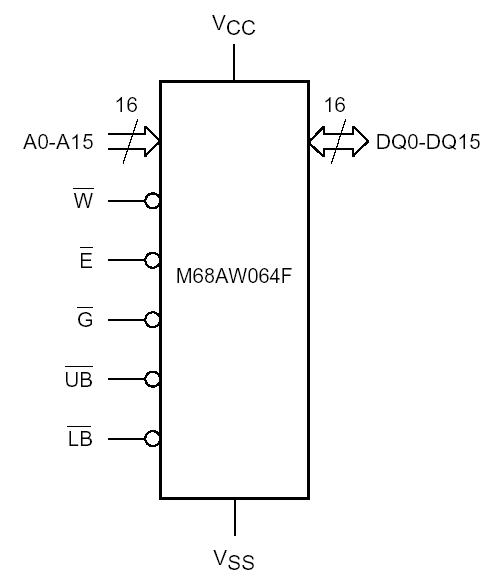

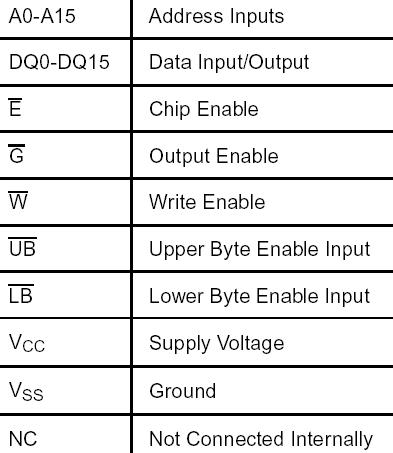

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
IO(1) Output Current 20 mA
TA Ambient Operating Temperature 55 to 125 °C
TSTG Storage Temperature 65 to 150 °C
VCC Supply Voltage 0.5 to 4.6 V
VIO(2) Input or Output Voltage 0.5 to VCC +0.5 V
PD Power Dissipation 1 W



Description

The M68AW064F is a 1 Mbit (1,048,576 bit) CMOS SRAM, organized as 65,536 words by 16 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.6V supply. This device has an automatic power down feature, reducing the power consumption by over 99% when deselected. The M68AW064F is available in TFBGA48 (0.75 mm pitch) package.
