Product Details

Description



Features:

 SUPPLY VOLTAGE: 2.7 to 3.6V
 32K x 8 bits SRAM with OUTPUT ENABLE
 EQUAL CYCLE and ACCESS TIME: 70ns
 LOW STANDBY CURRENT
 LOW VCC DATA RETENTION: 1.5V
 TRI-STATE COMMON I/O
 AUTOMATIC POWER DOWN

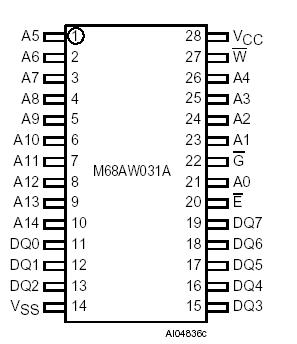

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
IO(1) Output Current 20 mA
TA Ambient Operating Temperature 55 to 125 °C
TSTG Storage Temperature 65 to 150 °C
VCC Supply Voltage 0.5 to 4.6 V
VIO(2) Input or Output Voltage 0.5 to VCC +0.5 V
PD Power Dissipation 1 W



Description

The M68AW031A is a 256 Kbit (262,144 bit) CMOS SRAM, organized as 32,768 bytes by 8 bits. The device features fully static operation requiring no external clocks or timing strobes, with equal address access and cycle times. It requires a single 2.7 to 3.6V supply. This device has an automatic power-down feature, reducing the power consumption by over 99% when deselected.

The M68AW031A is available in SO28 (28-lead Small Outline) and TSOP28 (28-lead Thin Small Outline, Standard and Reverse Pinout) packages.
